Radio Time Server

TS 900 MSF Radio Time Server [TS-900-MSF]

TS 900 MSF radio tidsserver løsningen består af en MSF ur, MSF antenne og NTP-software (TimeSync).

Kontakt Galleon Systems Anmod om et tilbud Anmod om dokumentation

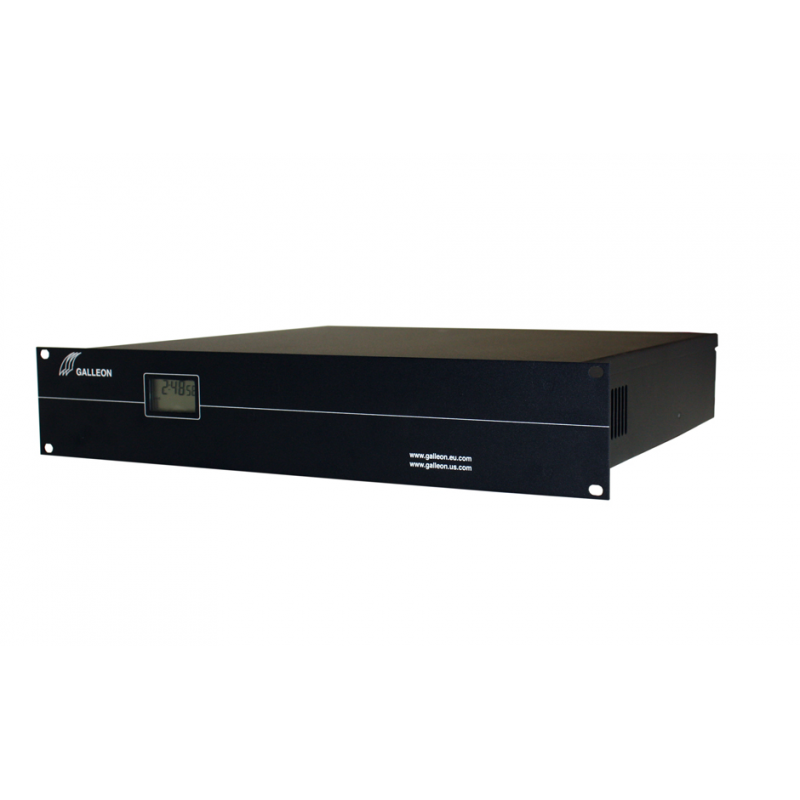

Rack Mount Radio Time Server

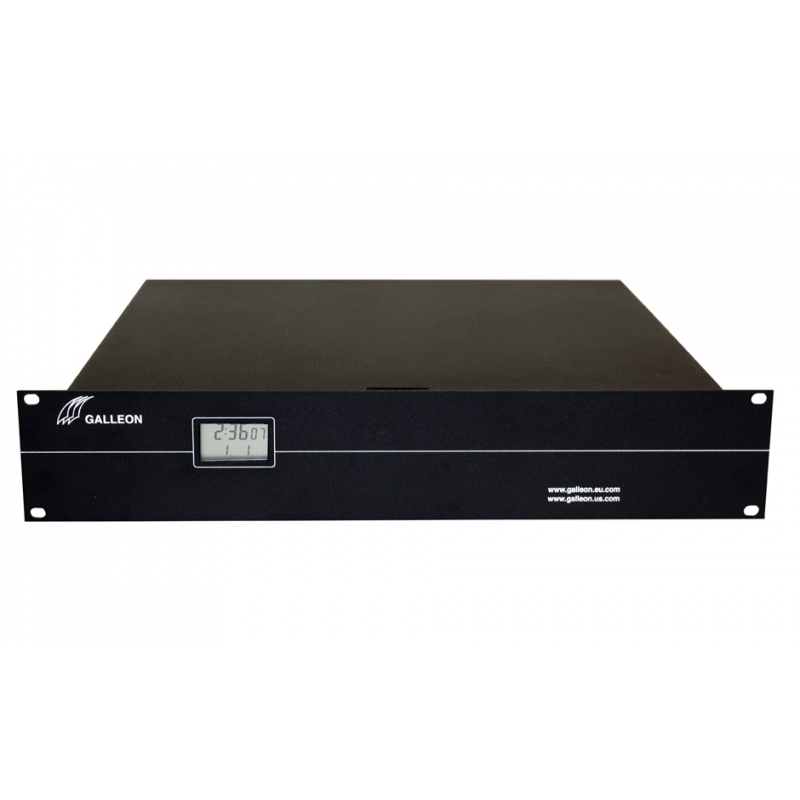

MSF ur er knyttet til Windows PC og den medfølgende TimeSync softwaren når de er installeret konfigurerer maskinen som Stratum en NTP tidsserver. En to linjers display på TS 900 enheden viser køre realtidsinformation til MSF delsystem og UTC tid.

Sidder sikkert bag din virksomhed firewall TS 900 giver en elegant løsning tillader en Windows Server eller en domænecontroller til at levere præcise, sikre UTC tid til enhver anden maskine eller digitalt ur på dit netværk.

Fordele

Installerer som en service på en Windows Server tilføje Stratum en NTP Time Server funktionalitet
Understøtter NTP og SNTP kompatible klienter
Frontpanel display til nemt at vurdere tid og satellit status
MSF tid henvisning input + 5m kabel
ledninger værktøj Extension kasse og omfattede GPS-antenne-kabel længde kan forlænges op til
1.000 mio (3.000 ft), hvis det kræves
Syslog fejlrapportering
advarsel Email hvis MSF synkronisering er tabt
3 års garanti
Lifetime teknisk support via telefon eller e-mail

Techical specifikation for TS 900 Radio Time Server

TS 900 Mål (mm)	(2U): 78 (H) x 425 (B) x 309 (D)
TS 900 Byggeri	Pulverlakeret stål
Antenne	Extenal Radio modtager til MSF Signal + monteringsbeslag
Strømforsyning	85 260V, 47 63Hz
protokoller	SNTP via Time Sync

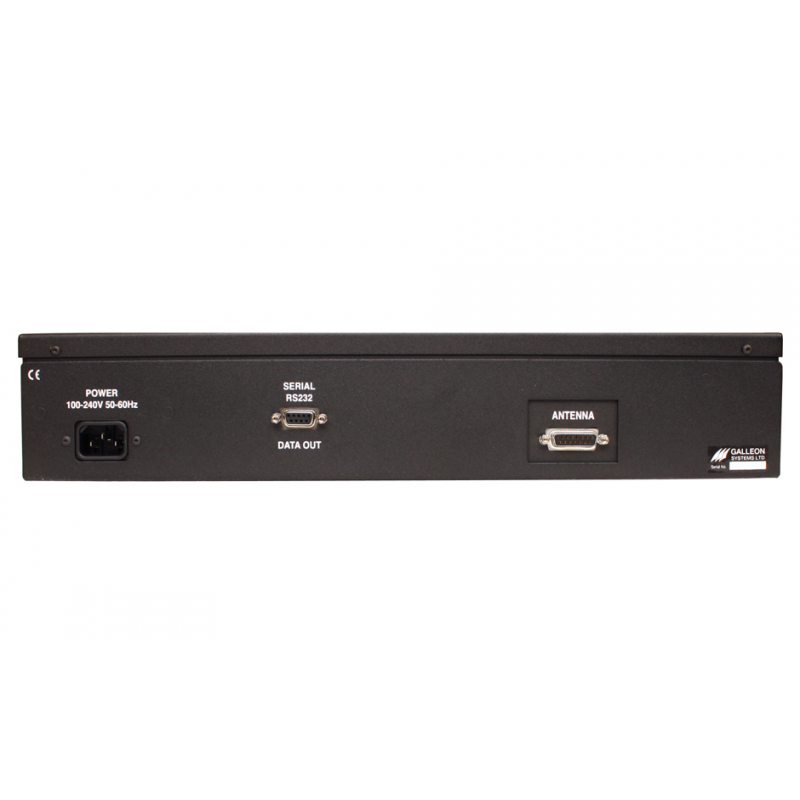

Tilslutninger	RS232 Seriel interface
Skærm	2 linje LCD
Anmodninger pr minut	Afhængig af Hardware
Betjening Temperaturer	0 50 ° C (32 122 ° F)
Fugtighed	Max. 85%
Mount	Rack
Fungere	Win> Stratum 1
Netværk Nøjagtighed	Netværk: + / 20 millisekunder, Typisk MSF: <2 mikrosekunder, I forhold til UTC
Sikkerhed	Systemfejl Logning

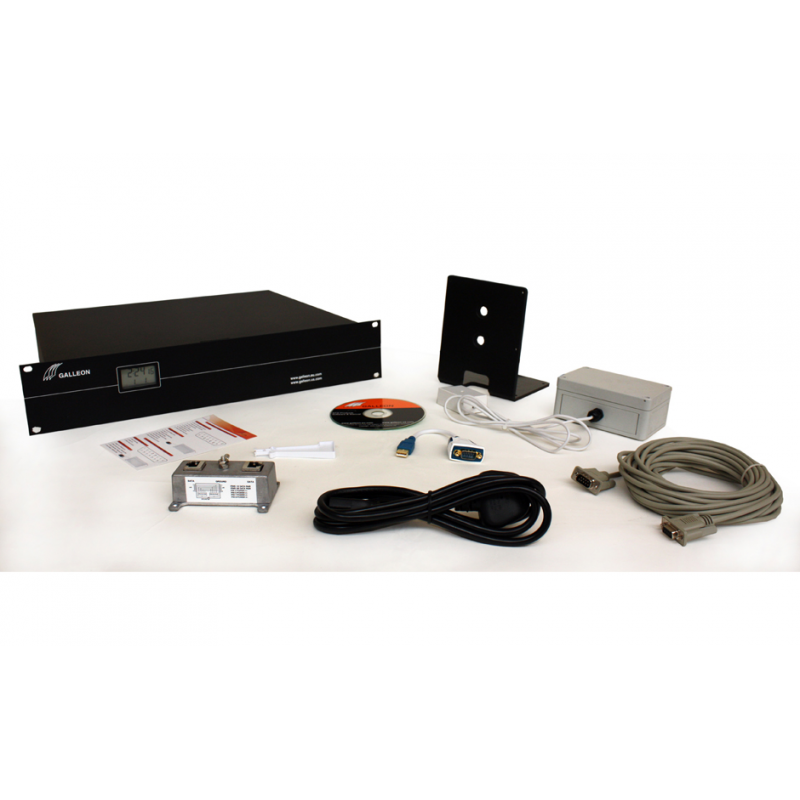

Hvad er der i kassen

TS 900 MSF enhed + Power Lead
MSF Antenne + strømforsyning
Antenne vægbeslag
Instruktionsmanual
NTP Software CD
Junction Box (at udvide antennekablet hvis nødvendigt)
IDC Cable Tool (for at indsætte forlængerledning ind i samledåsen hvis nødvendigt)
Yderligere Extras

addional Extras

Guld og Premium hjælpepakker
RS232 til USB konverter
Digital Vægure
Antenne kabel (100 til 1000 meter ruller til rådighed)
Ekstra strømforsyning (Anbefales fra 150 meter og frem)
Ekstra softwarelicenser (fås fra 5 til 300 + klienter)
