CASH Magnum Concussion | stuns animals with a non-penetrating bolt

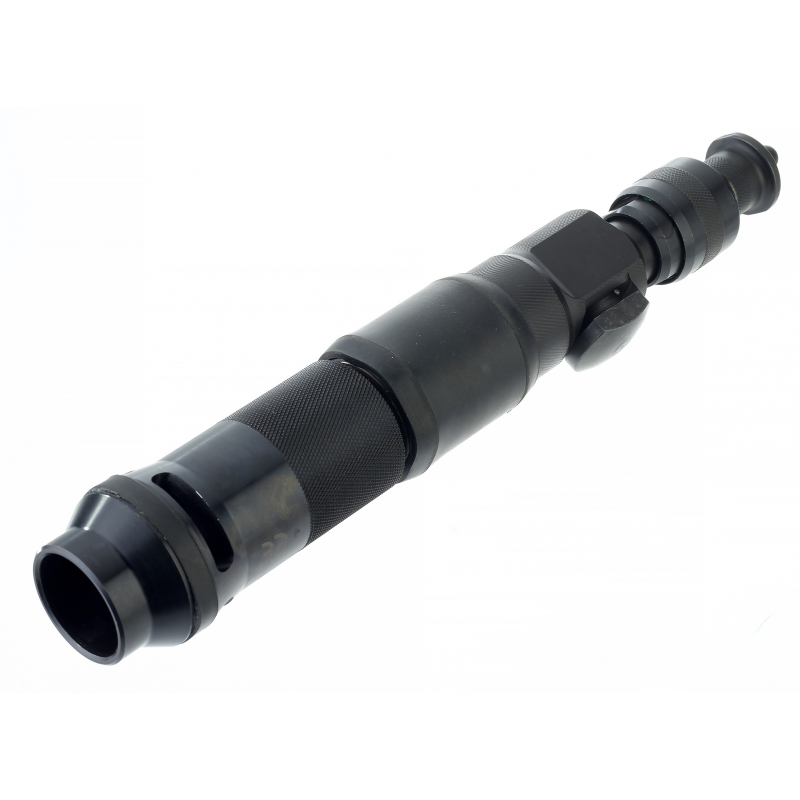

CASH Magnum Concussion [5654R, 5654RS]

The CASH Magnum Concussion is an extremely effective stun tool. The design combines a “blunt head” with the energy of.25” calibre cartridges.

This stun tool can be used with most animals, from piglets to extremely heavy animals, such as large bulls.

The power of the tool is aided by the free flight bolt which allows the full force of the cartridge to be transferred to the animal.

Contact Accles and Shelvoke Request a Quote Request Documentation

CASH Magnum Concussion - features

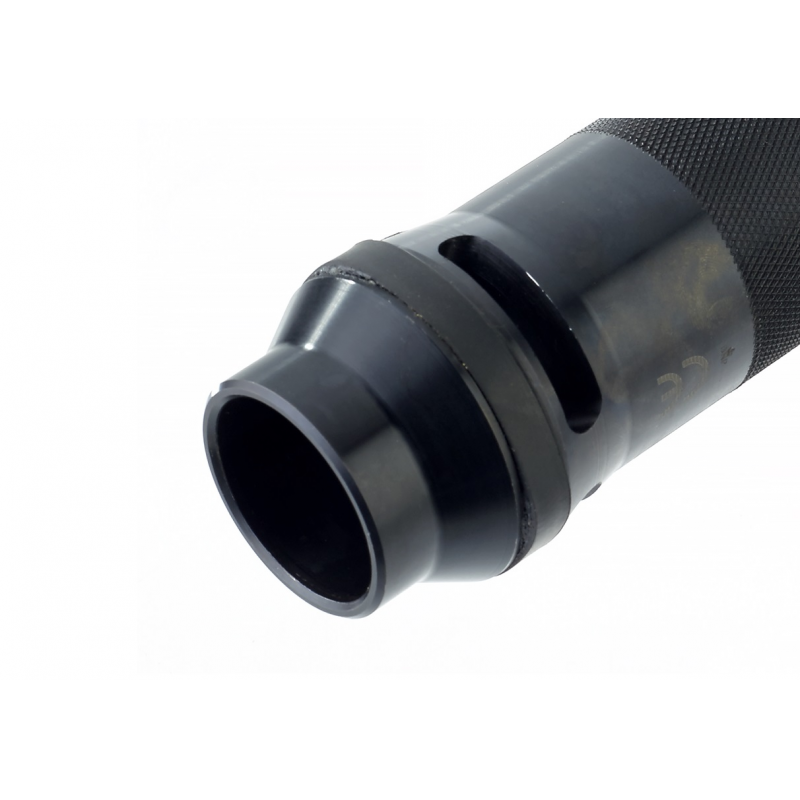

• Convex shaped concussion head
• Free flight bolt

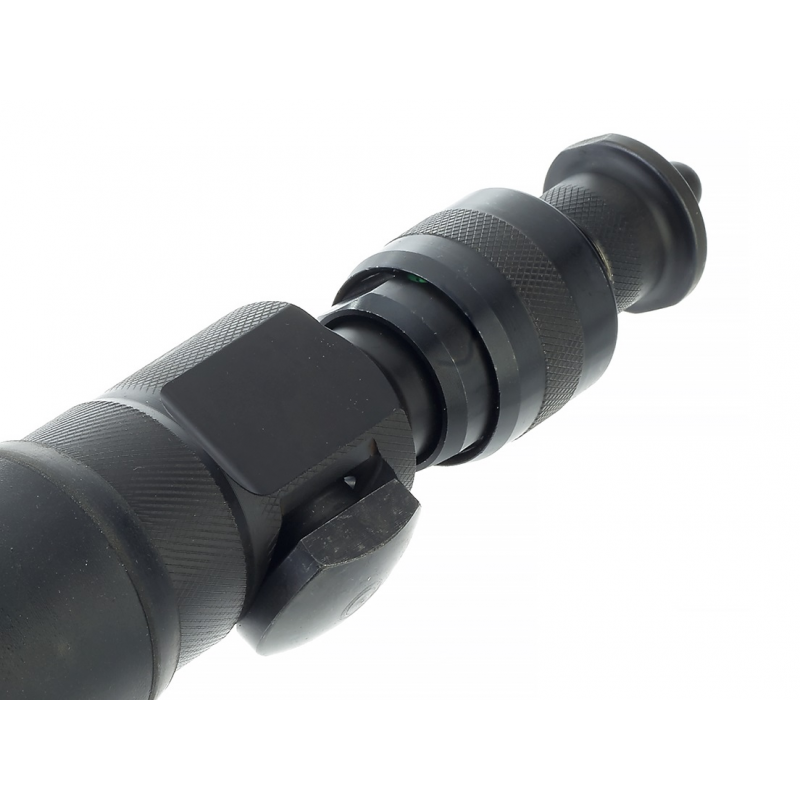

• Trigger-fired operation
• Fast loading action
• Robust construction
• Reliable performance
• Can be used with a wide range of cartridges for different animal sizes
• Low maintenance costs
• CE compliant to Machinery Directive 2006/42/EC, CIP approved cartridges and ISO 9001 quality standard
• Supplied with cleaning tools and maintenance instructions

CASH Magnum Concussion - products

CASH Magnum Concussion .25"	The CASH Magnum Concussion is the perfect tool for a diverse range of livestock. The proven design, durable construction and reliable cartridges ensure superior performance. The cartridges are available in six strengths, including the most powerful 6 grain Red cartridge.
CASH Magnum Concussion .25" SF	The CASH Magnum Concussion tool has a Stop Fire feature which provides the highest level of user safety. The firing pin is prevented from impacting the cartridge and stops the tool from firing. This gives an additional layer of security to the user.

CASH Magnum Concussion -specifications

Description	Calibre	Product Weight	Max cartridge	Product Code
CASH Magnum Concussion .25"	.25"	2.9 kg	6 grain	5654R
CASH Magnum Concussion .25" SF	.25"	2.9 kg	6 grain	5654RS

CASH Magnum Concussion - cartridges

Calibre	Colour	Grain	Energy (J)	Suggested Uses	Product Code (Tin 50)	Product Code (Box 1000)
.25"	Pink	1.25	233	Young calves, piglets, lambs and kids	4121KA	7760
.25"	Yellow	2	301	Small cattle, small pigs, ewes and goats	4121KB	7710
.25"	Blue	3	350	Medium sized cattle, market pigs, horses and other large animals	4121KC	7757
.25"	Orange	3.5	415	Heavy cattle and bulls, heavy pigs and large horses	4121KD	7748
.25"	Black	4	454	Very heavy animals	7754T	7754
.25"	Green	4.5	515	Extremely heavy animals	7725T	7725
.25"	Red	6	637	Exceptionally heavy animals	7705T	7705

The CASH Magnum Concussion uses a convex non-penetrating head to deliver a sharp blow to the cranium. The animal is made unconscious and ready for processing with minimal stress and suffering. This method is compliant with the religious requirements of halal because the animal is otherwise unharmed and can be bled.

The CASH Magnum Concussion is manufactured to the highest standards, with most precise tolerances, and using the finest materials.
