Munro 30 lpm Nitrogen generator

Munro 30 Nitrogen Generator [MUNRO30]

30 lpm Nitrogen generator high flow rate nitrogen generator

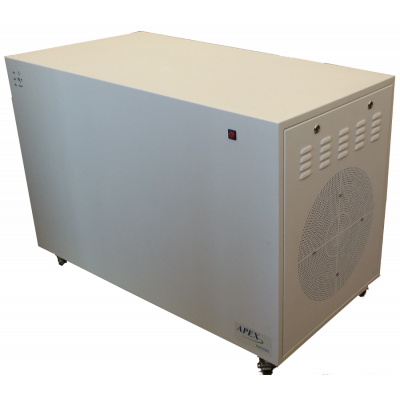

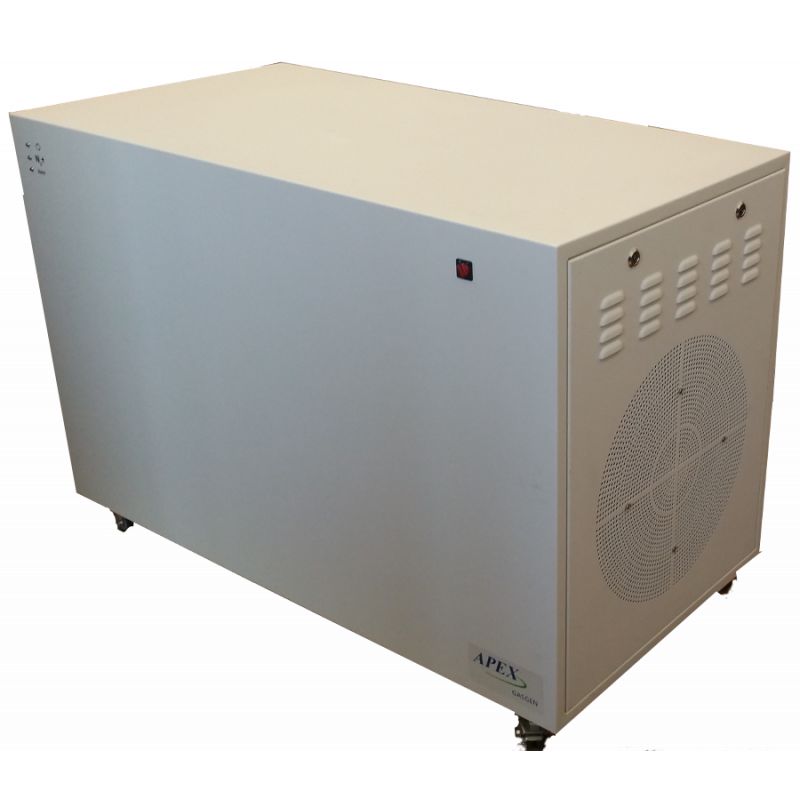

The Munro 30 lpm Nitrogen generator is part of APEX's range of high flow rate Nitrogen generators. This Pressure Swing Adsorption (PSA) generator produces Nitrogen at a flow rate of up to 30lpm.

Contact Apex Gas Generators Request a Quote Request Documentation

Further details of the Munro 30 lpm nitrogen generator

Characteristics:

Dry Nitrogen up to 99.9% pure

Flow rate up to 30 liters per minute

Output pressure of 6.8 bar (100psi)

Standby mode, only delivers nitrogen when required

Optional integrated compressors

Simple maintenance.

Description:

The Munro 30 lpm Nitrogen generator is part of our Munro series of high flow rate Nitrogen generators which is a range of discrete, efficient and modular Nitrogen generators that produce dry nitrogen only when you need it. The Nevis series uses Pressure Swing Adsoprtion (PSA) technology for superior performance and reliability. The series includes a range of models to cover most applications. When selecting a system, consideration should be given to the required flow rate, purity and delivery pressure. Additionally Apex will be happy to consult with you as to which specific model would suit you. The units are fitted with castors to allow them to be maneuvered easily into position. Most models in the series will fit under a workbench. All of the units in the range are built on a modular design to allow the capacity to be expanded upon.

Each high flow rate nitrogen generator in the series can be run from an external source of compressed or can be built with an integral compressor. Using an external air source air will provide almost silent operation. An integral compressor allows the system to run as a complete stand alone solution.

Maintenance of your Munro Series high flow rate Nitrogen Generator is simple with all regular maintenance parts being easily accessible.
