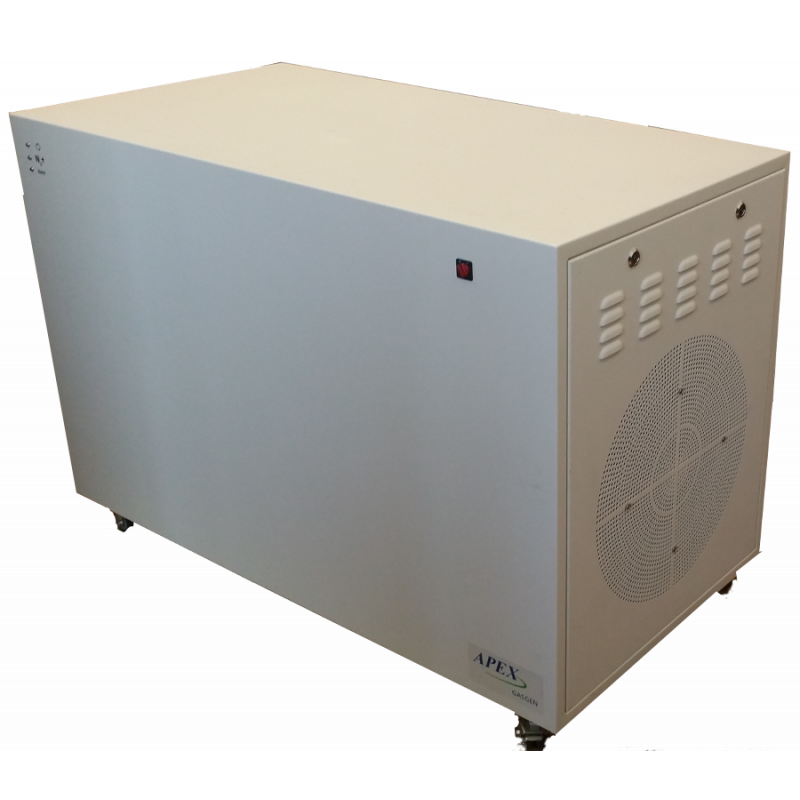

Nevis 10 lpm High purity Nitrogen generator

The Nevis 10 is a 10 lpm high purity nitrogen generator from Apex's range of Ultra High Purity Nitrogen generators. This model of PSA generator produces Ultra High purity Nitrogen at flow rates of up to 10 litres per minute.

Contact Apex Gas Generators Request a Quote Request Documentation

Further details of the Nevis 10 lpm high purity nitrogen generator

Characteristics:

High Purity Nitrogen up to 99.9995% pure

Flow rates up to 10 liters per minute

Output pressure of 5.4 bar (80psi)

Standby mode, only deliverys nitrogen when required

Optional integrated compressor

Simple maintenance.

Description:

The Nevis 10 10 lpm High Purity Nitrogen generator is part of our range of discrete, efficient and modular Nitrogen generators that produce ultra high purity nitrogen only when you need it. The Nevis series uses PSA (Pressure Swing Adsorption) technology for superior performance and reliability. The series includes a range of models to cover most applications. When selecting a system, consideration should be given to the required flow rate, purity and delivery pressure. Additionally Apex will be happy to consult with you as to which specific model would suit you The larger units are fitted with castors to allow them to be maneuvered easily into position. Most models in the series will fit under a workbench. All of the units in the range are built on a modular design to allow the capacity to be expanded upon if required.

Each high purity nitrogen generator in the series can be run from an external source of compressed air or can be built with an integral compressor. Using an external air source air will provide almost silent operation. An integral compressor allows the system to run as a complete stand alone solution.

Maintenance of your Nevis Series High Purity Nitrogen Generator is simple with all regular maintenance parts being easily accessible.
