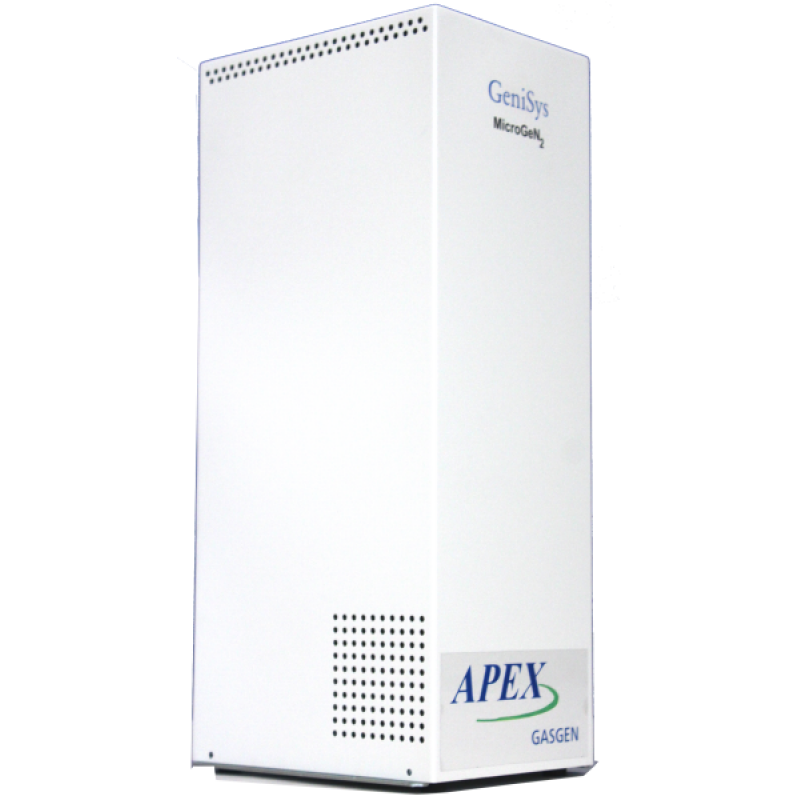

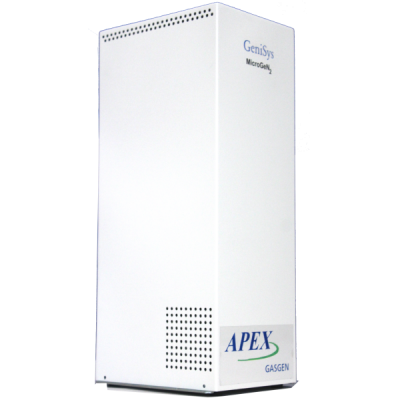

Nevis Desktop Nitrogen generator
Nevis Desktop Nitrogen generator [Nevis Desktop]
The Nevis Desktop Nitrogen generator is Apex's smallest model and one of the most compact generators on the market. The Nevis Desktop uses PSA technology to produce up to 200cc/min of High Purity Nitrogen in one of the most compact generators on the market.
Further details of the Nevis Desktop Nitrogen generator
Characteristics:
Ultra High Purity Nitrogen up to 99.9995% pure
Flow rate of 0.2 liters per minute
Output pressure of 5.4 bar (80psi)
Standby mode, only delivery nitrogen when required
Optional integrated compressor
Simple maintenance.
Description:
The Nevis Desktop Nitrogen generator is a discrete, efficient and compact Nitrogen generator that produces Ultra High Purity nitrogen only when you need it. The Nevis Desktop uses PSA technology for superior performance and reliability. The Nevis Desktop Nitrogen generator can be adapted and configured to support a wide range applications. When selecting a system, consideration should be given to the required flow rate, purity and delivery pressure. Additionally Apex will be happy to consult with you as to which options would suit you. The Nevis Desktop Nitrogen generator can be configured to produce higher flow rates although this will result in a decrease in the purity of the Nitrogen produced and the output pressure. The Nevis Desktop generator is small and quiet enough that it can easily be positions on a desktop directly beside an application
The Nevis Desktop nitrogen generator can be run from an external source of compressed or can be built with an integral compressor. Using an external air source air will provide almost silent operation. An integral compressor allows the system to run as a complete stand alone solution.
Maintenance of your Nevis Desktop Nitrogen Generator is simple with all regular maintenance parts being easily accessible.
