Digital Signage Touch Screen - touch screen technology with Digital advertising in mind

Digital Signage Touch Screen [PDS-Series-UK]

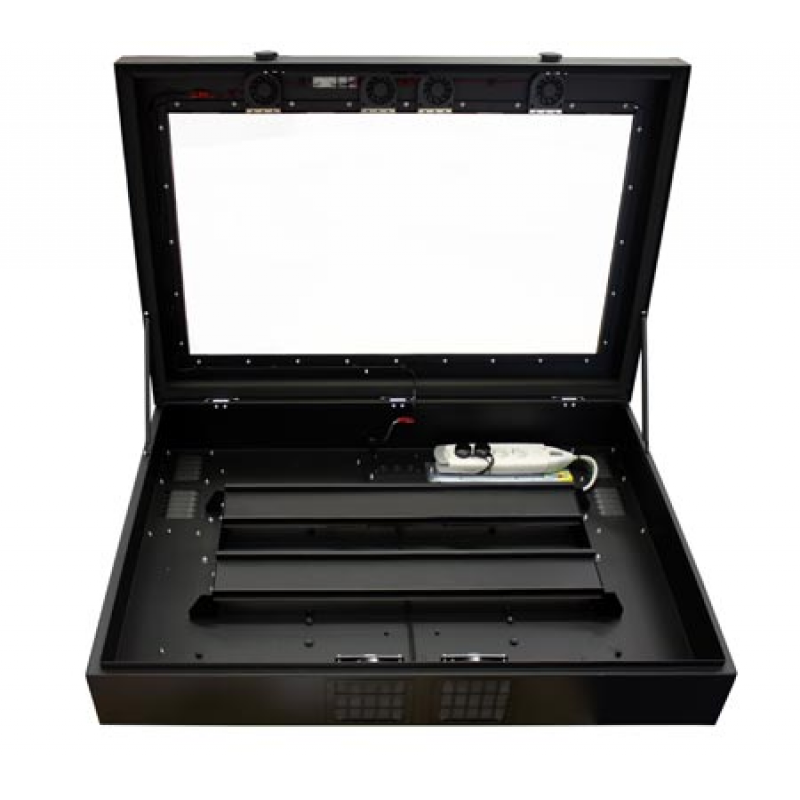

Digital signage touch screen open showing internal view

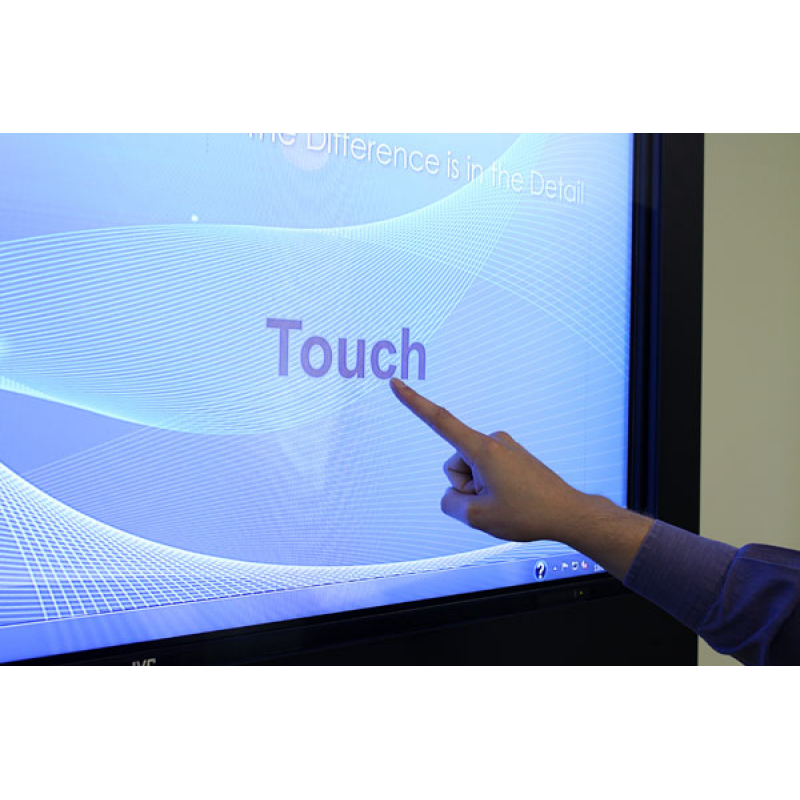

Digital signage touch screen close up being used

Digital Signage Touch Screen Enclosure

Providing a new method to communicate and attract new customers, the digital signage touch screen enclosure from Armagard provides businesses with the means to display and engage with audiences in busy outdoor environments, through interactive, brand-engaging promotions.

Contact Armagard LTD Request a Quote Request Documentation

Protecting against collisions, particle ingress and sealed to IP54, The Digital signage touch screen enclosure offers a cost-effective alternative to dedicated outdoor displays, customers can integrate their own thin-client PC and LCD display, while benefiting from long-term outdoor security.

Using a projected capacitive touch-foil across the display window (Glass only), the clear thin-layered film adds single or multi-touch abilities to the enclosure, it can work in an outdoor environment, and is available for all our enclosures sized 32” to 70”.

Ideal for:

Outdoor and Indoor Areas.
Weather-Proof Interactivity.
Advertising and Information Engagement.
Transport, Shopping and Sports Locations.

At a glance:

Size (H x W x D)mm:: See table below
Material:: Powder Coated Mild Steel
Window: (Glass only): 32" up to 70"
Mounting:: Wall or Stand
IP rating:: IP54
Product Code:: PDS-Series-UK

Features & Benefits

The Digital signage touch screen enclosure protects against:

Heavy rainfall - Waterproof and outdoor ready
Dust Ingress - Suitable for industrial warehouses
Electrical surges - Reduces computer crashing
Impact Protection – Lowers hardware repairs and accidents
Temperature extremes - Regulated and adjusted temperature control
Theft Protection - Lockable and secure, enabling peace of mind

Specifications & Guarantees:

List of all our screen sizes and Dimensions

Max Screen Size:	Height(mm):	Width(mm):	Depth(mm):	Product Code:
19″ (48cm)	500	545	214	PDS-19
24″ (61cm)	523	721	213	PDS-24
32″ (81cm)	630	895	234	PDS-32
42″ (106cm)	761	1127	233	PDS-42
47″ (119cm)	815	1230	249	PDS-47
52″ (132cm)	936	1351	248	PDS-52
55″ (139cm)	980	1430	248	PDS-55
60″ (152cm)	1050	1530	247	PDS-60
70″ (178cm)	1227	1865	278	PDS-70
72″ (182.8cm)	1227	1865	246	PDS-72
75″ (190cm)	1227	1865	246	PDS-75

We guarantee:

5 Year Warranty of all mechanical parts
Fast delivery
Informed and helpful staff
High quality engineering
Over 14 years of industry experience
