Radio Time Receiver [AC-300-MSF]

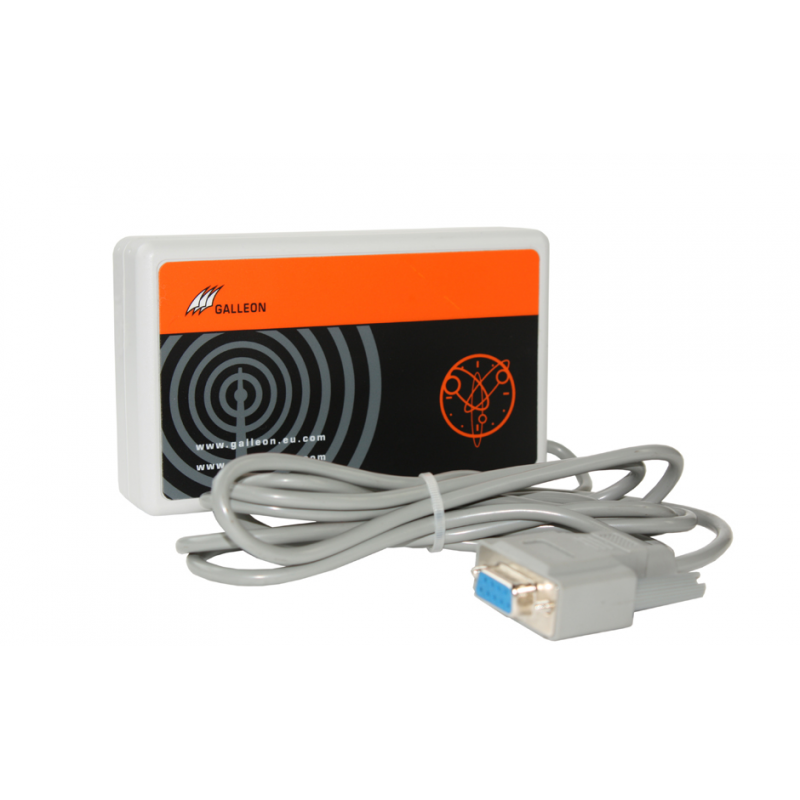

front view of radio time receiver with RS232 interface

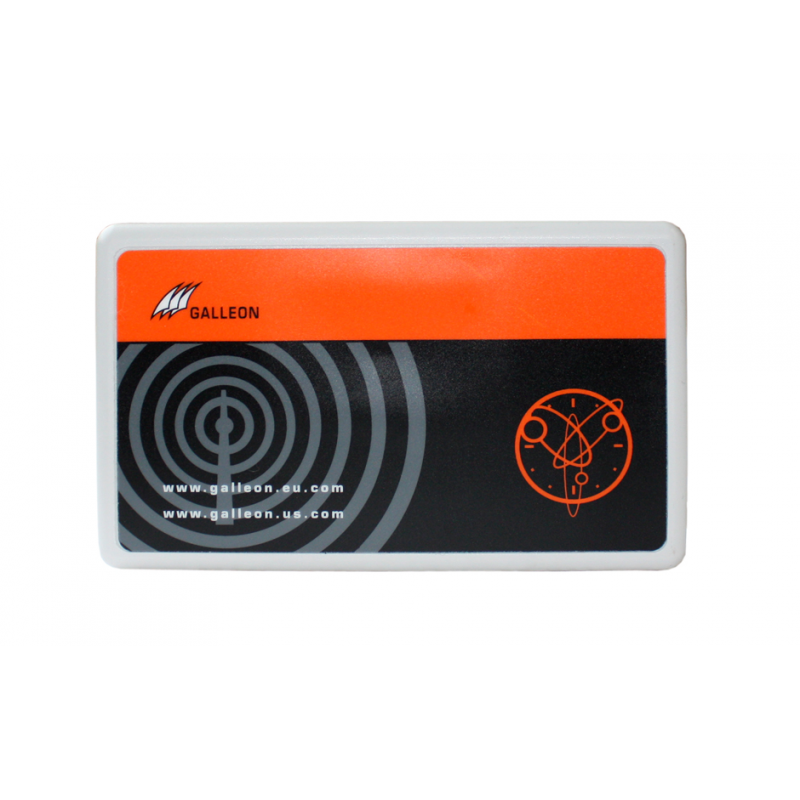

View from the front of the radio time receiver

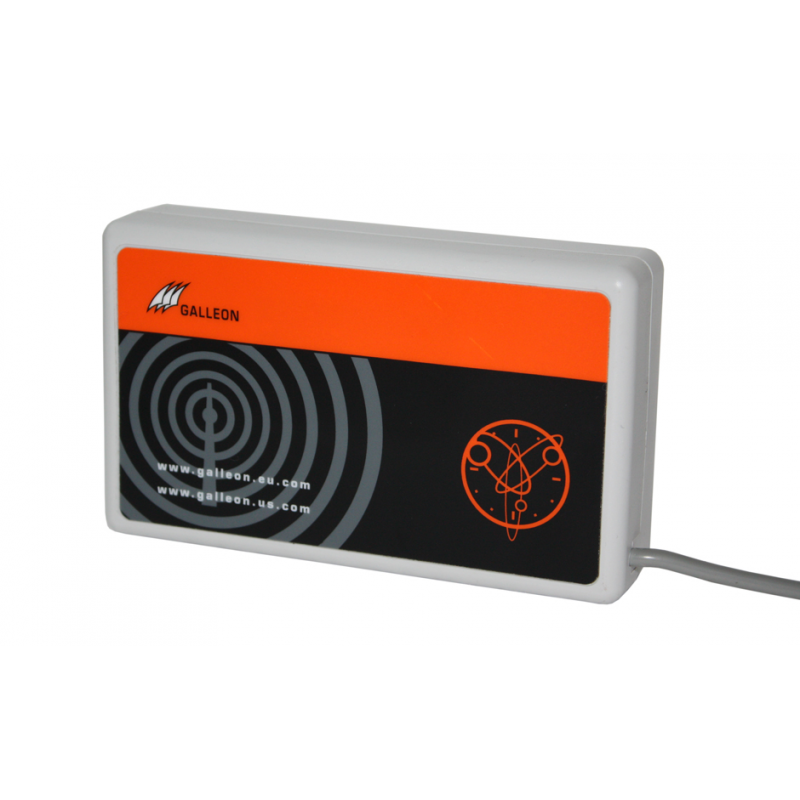

View from the side of the radio time receiver

Entry level radio time receiver

The AC-300-MSF radio time receiver from Galleon Systems has a serial interface and is supplied with software to synchronise the internal time and date of a single connected computer.

The AC-300-MSF radio time receiver features an RS232 serial interface and works with NTP software to automatically update the time and date on your computer to precise atomic time immediately after starting up the computer.

This radio controlled clock for PC may be desk/table or wall mounted.

Contact Galleon Systems Request a Quote Request Documentation

Key Benefits

Low cost
External MSF antenna
Accuracy ±500ms
Mains powered
One year warranty

Technical specification for AC-300-MSF Radio Time Receiver

Power supply	3V (2 batteries LR3: 2 x 1,5V)
Battery life time	About 2 years
Interface	PC interface
Reception sensitivity	<50uV/m
Start of the time signal synchronisation	a. Automatically b. Command from the PC
Connection and data transfer	RS232 Serial interface at 300bps
Operating temperature range	0°C – 50°C
Connector cable	1.5m; 9-pole Sub-D plug
