NTP synchronized digital clock for time synchronization

BRG Synchronised Clock [BRG clock – various codes]

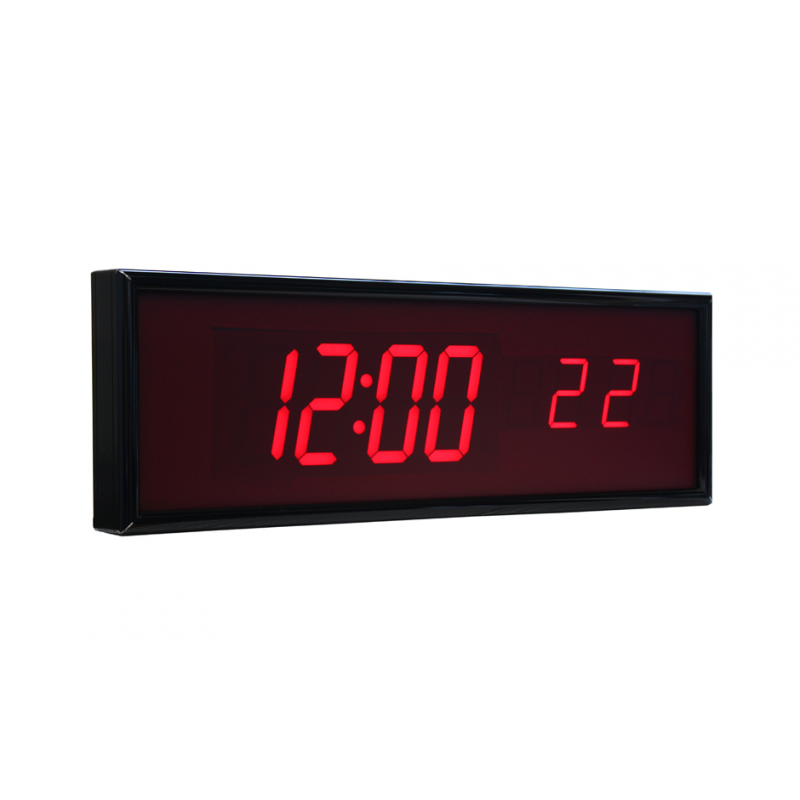

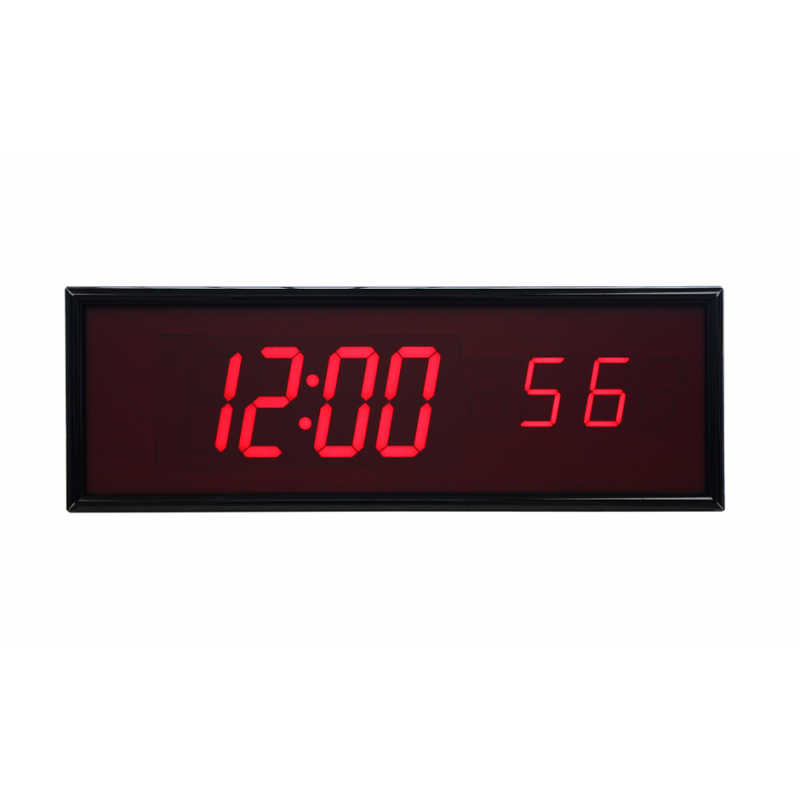

BRG six digit ntp synchronized digital clock front view

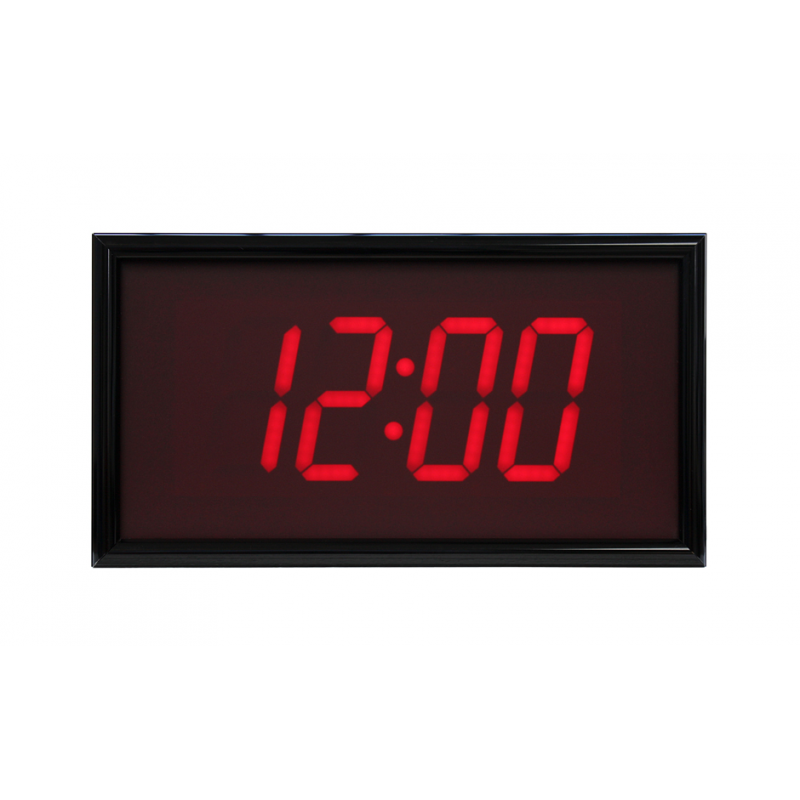

BRG four digit ntp synchronized digital clock front view

BRG six digit ntp synchronized digital clock side view

Accurate and reliable NTP synchronized digital clock

Synchronized and highly accurate, the time is automatically updated to ensure consistency and reliability
Uses PoE (Power over Ethernet) for easy installation and operation
Hundreds of clocks can be configured from a single PC
Available with character heights up to 12 inches, time is clearly communicated

Contact Galleon for pricing and more information.

Contact Galleon Systems Request a Quote Request Documentation

BRG NTP synchronized digital clock

As experts in time synchronization and with over two decades of industry experience, Galleon provide reliable and precise network display solutions for large to medium sized multinational corporations such as, Vodafone, HSBC and Buckingham Palace.

Available in unit size from 1.8 to 12 inches, the BRG digital clock offers a presentable and clear display that’s ideal for warehouses and large office environments. Compatible with any Galleon unit with the product code NTS and TS, the model-B digital clock is capable of synchronizing with any local NTP server through a standard ethernet cable. Presented with a glossy black finish, easily installed and powered by either PoE or a separate power supply, Galleon Systems provides cost-effective and comprehensive solutions for displaying your businesses network time.

Mounting

19" rack mounting
Flush mount
Ceiling mount

Finish

Sturdy metal frame
Glossy black

Assurances

Synchronisation specialists
One-year warranty FCC and CE certified

Display:	4 digits (HH:MM) or 6 digits (HH:MM:ss)
Format:	12 or 24 hours and minutes
Properties:	Mega or tiger processor
Colours:	Red LED display and glossy black finish
Visibility:	50 - 188 meters
Power:	Mains powered or powered over ethernet
Battery backup:	Clock circuit with battery backup
Digit height:	Dimensions
(HH:MM) 1.8”	(W)31.1 x (H)15.9 x (D)5.7 (cm)
(HH:MM) 2.5”	(W)31.1 x (H)15.9 x (D)5.7 (cm)
(HH:MM) 4”	(W)38.7 x (H)21 x (D)5.7 (cm)
(HH:MM) 7”	(W)79.4 x (H)25.1 x (D)5.7 (cm)
(HH:MM) 12”	(W)120 x (H)37.5 x (D)5.7 (cm)
(HH:MM:ss) 1.8”	(W)38.7 x (H)15.9 x (D)5.7 (cm)
(HH:MM:ss) 2.5”	(W)46.4 x (H)15.9 x (D)5.7 (cm)
(HH:MM:ss) 4”	(W)61.6 x (H)21 x (D)5.7 (cm)
(HH:MM:ss) 7”	(W)114.9 x (H)25.1 x (D)5.7 (cm)
(HH:MM:ss) 12”	(W)181 x (H)37.5 x (D)5.7 (cm)
