NTP Time Server GPS - Galleon NTS-6002-GPS
NTP Time Server GPS [NTS-6002-GPS]
NTP Time Server GPS Hardware

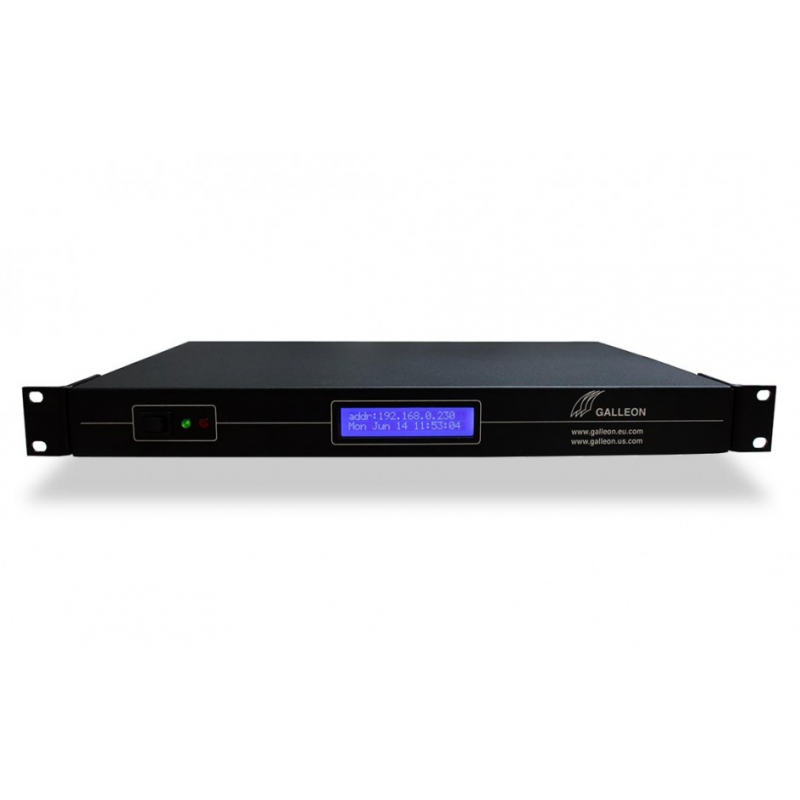

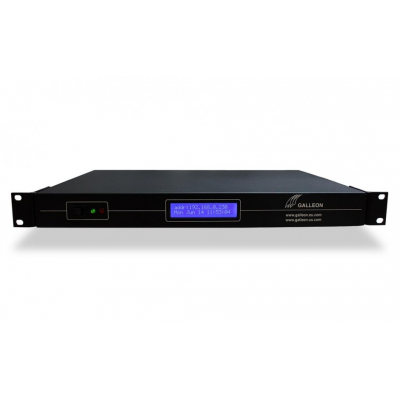

The NTP Time Server GPS NTS-6002-GPS Hardware has been upgraded to include a quad core CPU and reduce the power consumption of the unit. The NTS-6002-GPS NTP Time Server combines a GPS receiver with an embedded solid state computer running the Linux operating system.
Network NTP Time Server GPS with time receiver
The unit connects directly to your network via a CAT5 Ethernet connection and fits in a standard 19" rack. The time server incorporates a GPS computer clock and a highly accurate remote antenna that tracks up to 12 satellites for increased precision. The antenna is fully weather proof (IP65) and must be installed externally, preferably on a roof top with a all round view of the sky, it can be positioned up to 200m (600 ft) away as standard, or up to 1,000m (3,000ft) using an optional antenna extension kit.

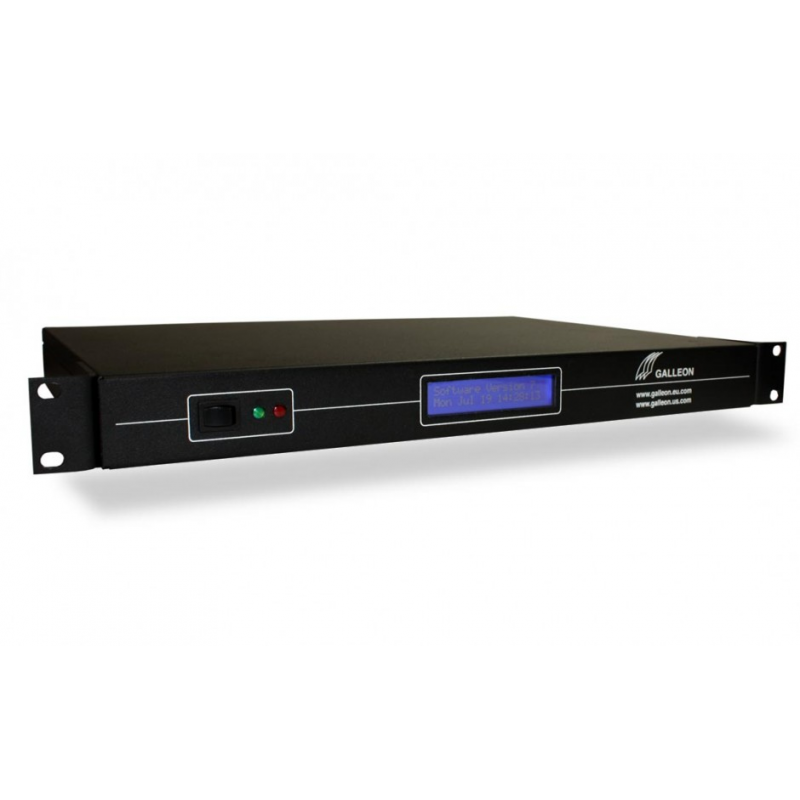

The NTS-6002-GPS has a backlit LCD display to show run-time information for both the GPS subsystem and the NTP server. It also helps aid installation. The Software drivers conform to the Network Time Protocol Version 4 (NTP V4) and are available for uni-cast, broadcast or multi-cast NTP time synchronization. Configuration and management of the unit is via a web interface. The IP address of the unit can be configured by using DHCP to assign an IP address automatically or a fixed IP address can be used.
The NTS-6002-GPS has dual Ethernet ports enabling it to serve time to 2 independant networks and can handle more than 500,000 NTP requests per minute per network.
Key Benefits
- Ready-to-operate Secure Stratum 1 NTP Time Server GPS
- 6 year warranty
- Includes GPS active antenna + can support a secondary time receiver for the MSF radio time signal
- Support for NTP v2, NTP v3, NTP v4 and SNTP compatible clients
- Supports both IPv4 and IPv6 networks
- Configured across network via a secure browser interface by HTTPS (RFC2616) and Secure Shell (SSH)

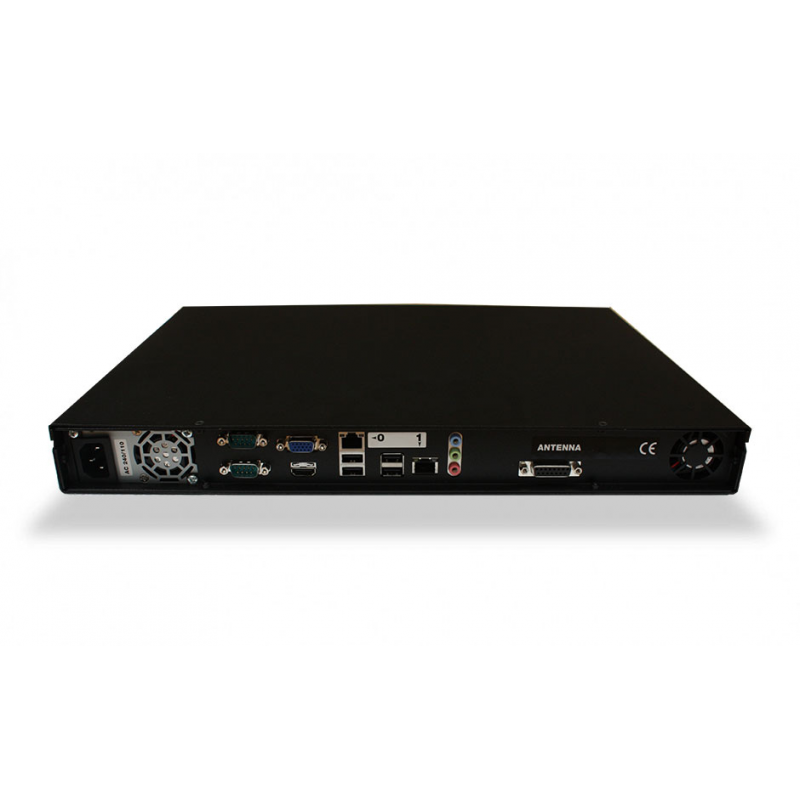

- Dual RJ-45 Ethernet interfaces 10/100/1000 Mbit
- Supports NIC Teaming for fail over and redundancy
- Can handle more than 500,000 NTP requests per minute per port, ideal for large networks
- MD5/SHA authentication for advanced security
- Able to Peer with other NTP time servers for enhanced synchronization security
- Solid State Flash memory enables software upgrades and eliminates 'disk failure'
- Front Panel display for Time and Satellite and Radio time Status
- SNTP and NTP protocol support
- Syslog error reporting
Product Specification for the NTS-6002 NTP Time Server GPS
| Receiver: | Active 12 channel GPS Antenna |
|---|---|
| Timing Accuracy: | Network: ± 10 milliseconds, typical GPS: <1 microseconds, relative to UTC |
| NTP Time Requests: | >500,000 requests per minute |
| Supported Networks: | Can supply time to 2 separate networks |
| Power Consumption: | 27 Watts |
| Housing: | Standard 19" rackmount (1U) |
| Dimensions (H × W × D): | 45mm × 425mm × 309mm |
| Display: | LCD Panel, 2 x 20 characters, with backlight |
| Operating System: | Linux |
| Protocols (NTP & SNTP): | NTP: v2 (RFC 1119), v3 (RFC 1305), v4 (RFC 2131) SNTP: v3 (RFC 1769), v4 (RFC 2030) |
| Network Interface: | Standard 10/100/1000 Base-T, Dual RJ-45 Network Connections |
| Power supply: | 85 - 260V, 47 - 63Hz |
| Operating Temperature: | 0-50°C / 32-122°F |
| Operating Humidity: | Max. 85% |

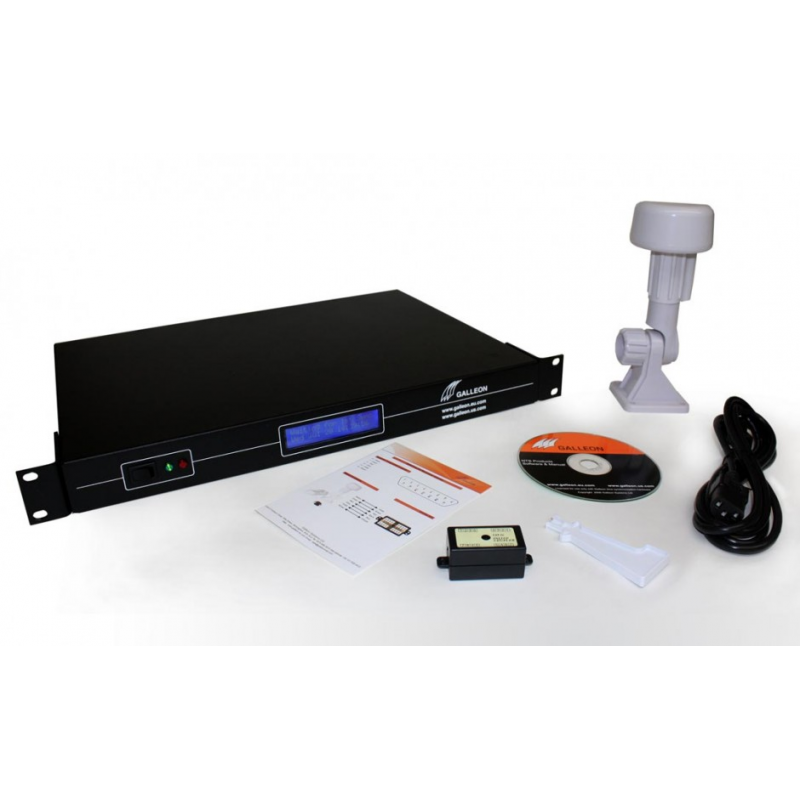

What's in the box
- NTP Time Server GPS NTS-6002-GPS Unit
- GPS Mushroom Antenna (with a 10m/8 Core Cable - not shown)
- Power Lead
- NTP Software & Instruction Manual on a USB Stick
- Junction Box (used to extend antenna cable - if necessary)
- IDC Cable Tool (used to insert cable into the junction box- if necessary)
Additional Extras
The following products are also available for use with the NTS-6002-GPS NTP Time Server:
- Gold and Premium Support Packages
- Digital Wall Clocks
- Secondary MSF Antenna
- Antenna Cable (100 to 1,000 metre rolls available)
- Additional Antenna Power Supply (Recommended from 150 metres onwards)
- Lightning Arrestor (advised to use CAT5 (RJ45) cable which can also be bought from us)
- Additional Software Licenses (available from 5 to 300+ clients)
