AXOS 8 Compact Generator

AXOS 8 [2490800]

The AXOS 8 - Compact Generator are a compact solution integrating several EMC tests into one single economic solution. This allows for quick and completely automated testing to the most common IEC, EN, ANSI, IEEE and UL standards.

Contact Haefely Hipotronics Request a Quote Request Documentation

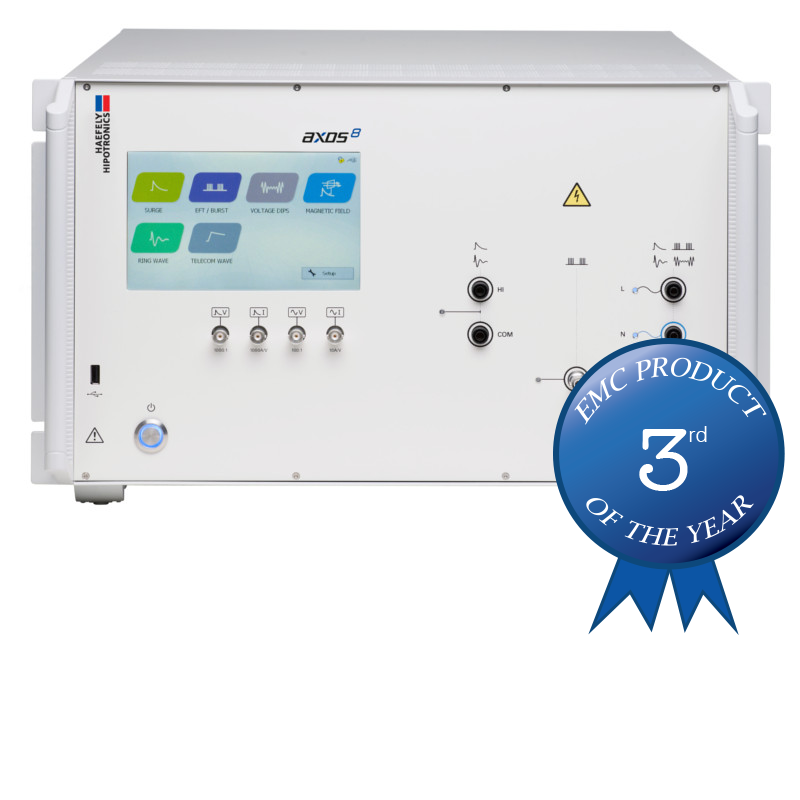

The AXOS 8 - Compact Generator

The AXOS 8 Compact Generator can be individually combined either with 7 kV Surge Combination Wave, 5 kV EFT/ Burst, Dips & Interrupts*, Telecom Wave, Ring Wave along with an integrated single-phase coupling / decoupling network. This allows quick and completely automated testing to the most common IEC, EN, ANSI, IEEE and UL standards.

The AXOS 8 can either be operated by front panel with a large color graphic interface or remotely from the PC. The easy to use menu together with the availability of predefined test routines for different standards makes testing easy and reliable, even for less frequent users. Numerous additional functions such as external start/stop function allows easy integration of the test system also in customer specific test environments.

All the test parameters can be varied in a broad range wide above the requirements of the standards. Together with the ability of changing test parameters during test, AXOS 8 is not only the ideal product for compliance and pre-compliance testing, it is useful for monitoring & debugging function during design phase as well.

A wide range of cost-efficient and user friendly coupling / decoupling networks for power lines as well as for symmetrical and asymmetrical data- and signal lines are available as options.

Software Options

Remote Control Software

The optionally available remote control software simply enables the user to remote control the AXOS 8 by using a remote device like a standard PC, Tablet or Smartphone. The connection can either be established by putting in a Ethernet cable "point to point" or via wireless network (a separate access point will be required).

Reporting Software

The reporting software automatically creates a test report. The main header can be adjusted with the individual company logo or any other text required. The data input can either be supplied directly by the remote control software or when saving the data on a USB drive. The data can be used from the sequence mode menu directly and the report gets generated. Detailed information will be provided with the reporting software tool itself. The reporting software is compatible with both Windows 7 and Windows 8 (32- and 64 - bit).

The Sequencer

Individual tests stored on the computer or in the AXOS 8 itself can be combined to form a complex and fully automated test sequence. This feature enables Surge, EFT/Burst, and Voltage Dips tests to be linked and run in a continuous sequence. The already preinstalled IEC and generic standards make programming easier than ever before.

AXOS 8 Technical Data

General Data

Control Power	85V - 264V 50/60Hz	Dimensions (W X H X D)	22" / 6U 45 x 27 x 50cm
User Test Storage	Unlimited	Weight	30kg
Remote Interface	Ethernet, RJ45	USB	for USB Memory Stick
Display	7" / 800 x 480 / 24 bit with touch screen	AUX. Interface	D-SUB 37 pin for external CDN, external transformer, other
External Trigger Input	5V TTL	Synch Input	BNC, 10V - 264V AC
Trigger Output	5V TTL	External Start/Stop input	5V TTL, Starts/Stops predefined test sequence
EUT Failed Input	5V TTL	Analog Output	0 - 10V, for use with external options
Warning Lamp Output	2 x 24V /1A DC	Safety Circuit	Stops the test when unlocked

IEC/EN 61000-4-4 Edition 3 EFT/Bursts

Output Voltage	0.2 - 5.0kV ± 10% at coaxial output	Spike Frequency	1Hz - 1MHz
Polarity	Positive / Negative / Alternate	Burst Duration	10μs - 1s
Output Impedance	50Ω	Burst Period	1ms - 10s
Rise Time	5ns ± 30%	Test Time	1s - 1000 min
Impulse Duration	50ns ± 30% at 50Ω 50ns -15 + 100ns at 1000Ω	Trigger	Automatic, Manual, External Trigger Input
Burst Mode	Normal, Continuous, Real, Random	Integrated Single Phase Coupling / Decoupling Network	264V AC / 16A 220V DC / 10A

IEC/EN 61000-4-5 Edition 3 Surge Combination Wave

Output Voltage	0.2 - 7.0kV ± 10%	Output Current	0.1 - 3.5kA ± 10%
Voltage Rise Time	1.2μs ± 30%	Current Rise Time	8μs ± 20%
Voltage Duration	50μs ± 20%	Current Duration	20μs ± 20%
Polarity	Positive / Negative / Alternate	Integrated Single Phase Coupling / Decoupling Network	264V AC / 16A 220V DC / 10A
Output Impedance	2Ω / 12Ω	Impulse Trigger	Automatic 2s - 100 min Manual External Trigger Input
Phase Sync	0 - 359° with 1° steps or asynchronous mode	Counter Preset	1 - 1000 / infinite
Counter	100000	Peak Current Monitor	BNC Output: 1kA/V Display: 3 Digits
Peak Voltage Monitor	BNC Output: 1000:1 Display: 3 Digits

IEC/EN 61000-4-5 Telecom Wave / ITU K.20, K.21, K.44, K.45 (External TW 8 Module required)

Output Voltage	0.2 - 7.0kV ± 10%	Source Impedance / Coupling	15Ω x 1 40Ω x 4 40Ω gas arrestors x 4
Front Time OCV	10μs ± 30%	Front Time SCC	5μs ± 20%
Decay Time OCV	700μs ± 20%	Decay Time SCC	320μs ± 20%
Polarity	Positive / Negative / Alternate	Weight	10kg
Outputs	4mm Banana Socket	Dimension	19" / 4U 45 x 18 x 49cm

IEC/EN 61000-4-11 Edition 2 and IEC/EN 61000-4-29 Dips and Interrupts

*Max Voltage	264V AC 220V DC	Interrupt Time	0.5 - 800 Period 100μs - 1000 min
*Max Current	10A DC 16A AC Continuous 20A for 5s 23A for 3s 40A for 3s >500A inrush current	Interval Time	1 - 800 Periods synchronous 100μs - 1000 min asynchronous
Trigger	Automatic Manual External Trigger Input	Test Time	1s - 1000 min Infinite
Interrupt Level Dip Level	0% 0 - 99% with external voltage source	Phase Sync	0 - 359° 16/40/50/60Hz Asynchronous mode
RMS Voltage Monitor	BNC output: 100:1 Display: 4 Digits	RMS Current Monitor	BNC output: 10A/V Display: 4 Digits

*AC Power for AXOS only. Do not use DC through DIP 116 unit.

IEC/EN 61000-4-12 Edition 3 and ANSI/IEEE C62.41 Ring Wave

Max Voltage	0.2 - 7.0kV ± 10%	Repetition Rate	Up to 30 pulses / min
Frequency	100kHz	Polarity	Positive / Negative / Alternate
Rise Time OC	0.5μs	Floating Output	Max. 460V / AC
Rise Time SC	1μs	Phase Sync Accuracy	±1°
Impedance	12Ω, 30Ω	Damping Rate	0.4 < peak> 0.4 < peak> 0.4 < peak>
Peak Voltage Monitor	BNC output: 1000:1 Display: 3 Digits	Peak Current Monitor	BNC output: 1kA/V Display: 3 Digits
