FP-COMB 32
FP-COMB 32 [2490430]

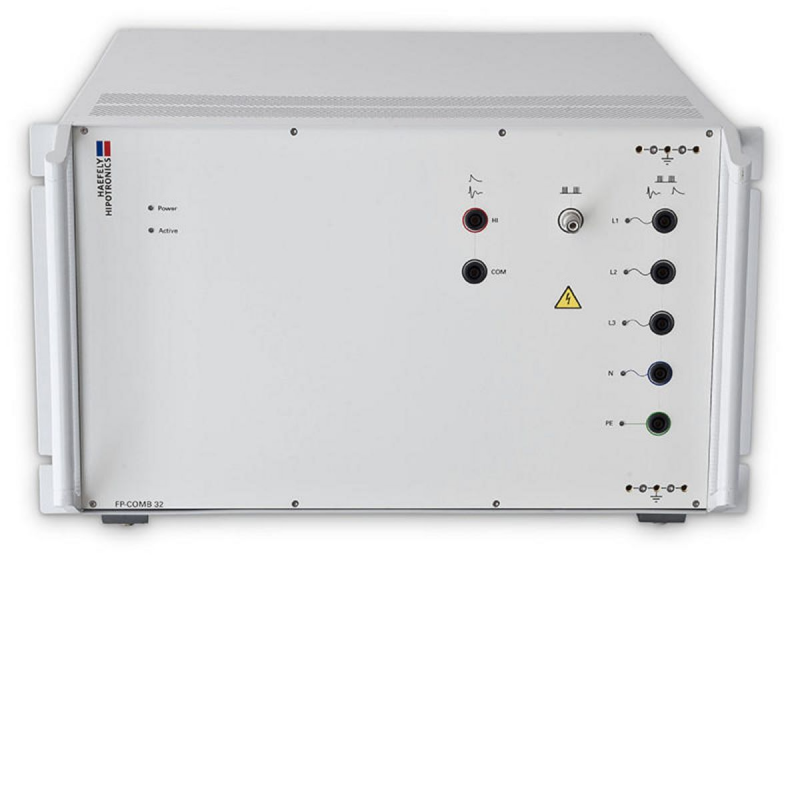

The FP-COMB 32 coupling/decoupling network for use with the Surge Combination Wave, Ring Wave, and EFT/Bursts testing. Fully compliant with the standard requirements of IEC/EN 61000-4-4, IEC/EN 61000-4-5, and IEC/EN 61000-4-12
The FP-COMB 32 coupling/decoupling network – for
Surge Combination Wave, Ring Wave and EFT/Burst –
is fully compliant with the standard requirements of
IEC/EN 61000-4-4, IEC/EN 61000-4-5 and IEC/EN
61000-4-12.
The FP-COMB 32 is controlled by the AXOS 5 / AXOS 8
expandable immunity test system(s). The CDN
automatically changes the coupling paths, phase
angles and source impedance based on test
parameters set by the user via the AXOS controller –
depending on the standard and coupling mode.
The FP-COMB 32 was designed to reduce residual
voltage levels at the EUT mains input by integrating the
proper decoupling inductors for each type of CDN
application in order to meet the requirements (with
regard to voltage drop at the rated current). Apart from
covering the EN/IEC 61000-4-5 standard, the FPCOMB
32 also covers tests to meet surge
requirements outlined in ANSI/IEEE C62.41.
Features
- Surge Combination Wave, 1.2/50μs - 8/20μs
- Ring Wave, 100 kHz
- Electrical Fast Transient (EFT) / Bursts
- 7kV impulse voltage for Surge Combination Wave and Ring Wave
- 5kV impulse voltage for EFT/Bursts
- Line voltage 480V AC/DC phase to phase
- 32A EUT current per phase
- Phase angle synchronization for each path
Benefits
- Combined CDN for Surge Combination Wave, Ring Wave, and EFT/Bursts
- LEDs indicate active mode and coupling path
- Automatic selection of Surge impedance
- Fully remote controlled by the AXOS series generators
Technical Specifications
Coupling
| CDN Inputs | Banana Socket Front Panel |
5 Connectors |
| CDN Outputs | Banana Socket Front Panel | 5 Connectors |
| Waveforms |
EFT/Burst Surge Combination Wave Ring Wave |
IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-12 |
| Maximum EFT Input Voltage | 5kV | |
| Maximum Surge Input Voltage |
7kV |
|
| Maximum Ring Wave Input Voltage | 7kV | |
| Coupling Path Selection | Automatic | IEC + ANSI |
| Synchronization | 10V - 480V input voltage, 0-359°, step 1° | Sync on coupling path, output BNC rear panel |
Decoupling
| Voltage AC |
Up to 480V AC 16.7Hz, 50Hz, 60Hz |
| Voltage DC | Up to 480V DC |
| Nominal Current |
32A |
| EFT Input Voltage Range | 0.2kV - 5kV |
| Surge Combination Wave Input Voltage Range | 0.2kV - 7kv |
| Ring Wave Input Voltage Range | 0.2kV - 7kV |
| Coupling Path Selection | Automatic |
| Synchronization | 10V to 480V input voltage, 0-359°, step 1° |
