ONYX Series (Electrostatic discharge simulator gun)
ONYX 16/30 [2499980/82]

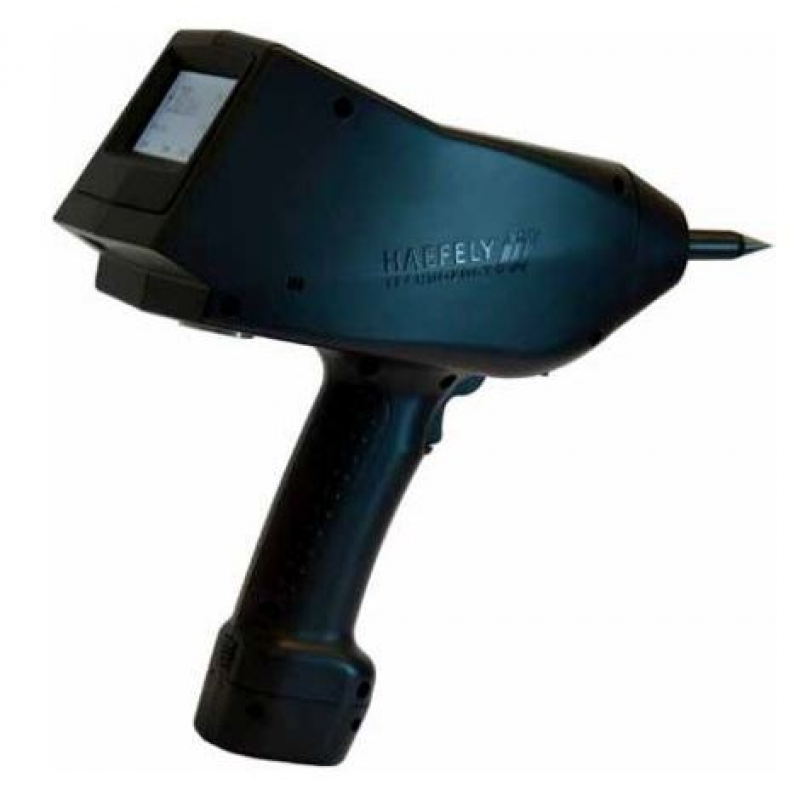

The ONYX Series -Electrostatic discharge simulator gun is a state of the art electrostatic discharge simulator available in 16kV or 30kV versions. It is the most ergonomic 30kV ESD gun without an additional base control unit that can be battery or mains operated. The easy to use touch screen, ergonomic design, modular RC units, multilingual interface, remote control software, built-in LED light and temperature & humidity display allows for trouble-free use of the ONYX in all types of test sites.
ONYX Series - Electrostatic discharge simulator gun
TECHNICAL SPECIFICATION
Air Discharge Voltage |
1-16kV or 1-30kV |
Voltage Resolution |
100V Steps |
Cont. Discharge Voltage |
1-16kV or 1-30kV |
Discharge Polarity |
Positive and Negative |
Discharge Repetition |
Single/0.1/0.2/0.5/1/2/5/10/20Hz |
Operating Modes |
Single and Continuous |
Discharge Counter |
1-9999 |
Battery Life |
> 16 Hours |
Default R/C Network |
150pF / 330Ω |
Power Consumption |
17VA |
Dimensions(W x H x D) |
290 x 270 x 110 mm |
Weight |
1.7kg |
Smart Key Function
The ONYX Series - ESD Simulator Gun has an integrated smart key integrated into the trigger button. Multiple functions can be defined by the user including: polarity switching, LED light, counter reset, voltage stepping up/down, and others.
Self Test
The ONYX features a self test which verifies all of the main components of the unit are working correctly. This ensures that accurate and reliable tests are performed every time the gun is used.
BENEFITS
Flexibility – enables users to meet many different test specifications with maximum cost effectiveness.
Quick and Simple – one touch operation and simple on screen menu structure.
Mobility – the most ergonomic 30kV ESD gun on the market without an external base control unit.
Reliable and Economical – A Swiss made product, reliability, service and support in a budget-friendly package.
Features
User defined 'smart key' function
Touch screen interface
Ergonomic design
No base unit
Predefined tests according to Standard
Define, store, and load tests
User replaceable RC networks
Automatic polarity switching
Remote Control
Battery or mains operation
Applications
IEC/EN 61000-4-2 Edition 2 (2009)
IEC/EN 61326
IEC/EN 61000-6-1 & -6-2
IEC 61340-3-1
ISO 10605
GMW 3097
Ford AB/AC
ANSI C63.16
PSA B21 7110
ISO 14304
ITU-T K.20
MIL-STD-331/-464/-750/-883/-1512/-1514/-1541/-1542
RTCA/DO-160
JEDEC 22-A114
GR-78-CORE
GR-1089-CORE
and others
