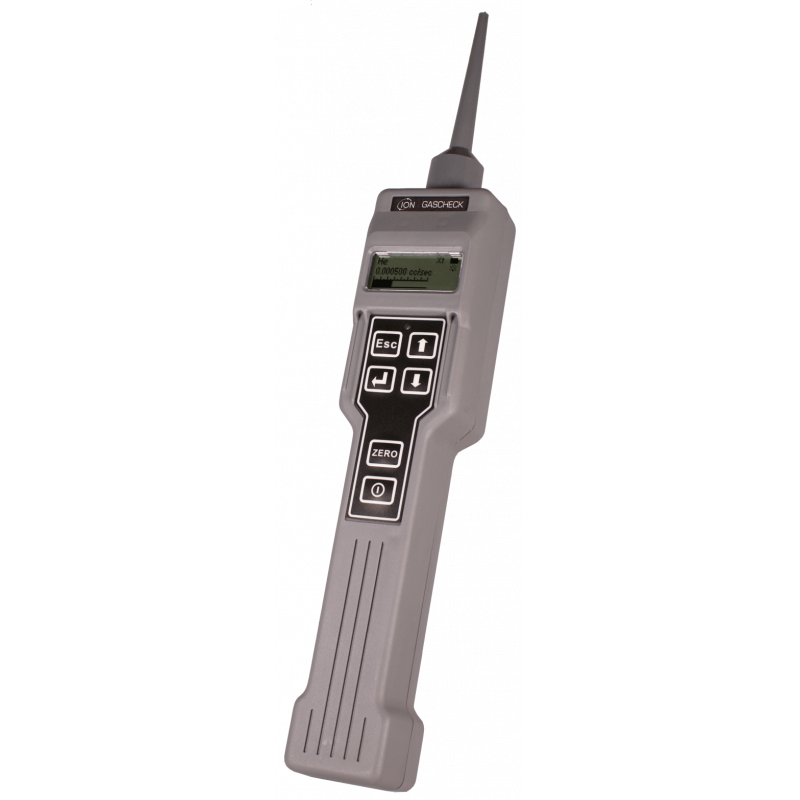

GasCheck Tesla [handheld helium leak detector]

GasCheck Tesla is a handheld helium leak detector manufactured by Ion Science. The GasCheck detector incorporates the advanced microthermal conductivity sensors. The sensor provides advanced sensitivity, and rapid and effective detection of helium leaks.

The detector is reliable, robust and easy to use.

Contact IonScience Request a Quote Request Documentation

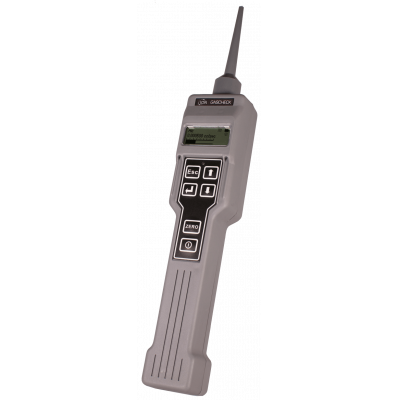

GasCheck Tesla

GasCheck Tesla is a highly sensitive, handheld helium leak detector. The detector is designed to provide rapid and accurate measurements of helium in high magnetic fields around the Magnetic Resonance Imaging (MRI) scanners. The advanced microthermal conductivity sensors enable the device to detect helium leaks at ultra-low levels.

The helium detector can be used whilst the MRI scanner is in operation, eliminating interruptions at work.

The detector comes with a handheld probe. The device is designed to reach small places, enabling fast detection of all possible leak paths.

GasCheck Tesla has the following benefits:

Operates effectively around a high magnetic field
Detects small leaks at ultra-low levels
The small internal flow rate provides maximum sensitivity
Fast and accurate leak detection
Reliable, stable and continuous readings
Rapidly detects helium leaks and minimises interruption
Low cost alternative to expensive mass spectrometers
Affordable and parts
2 year warranty when the instrument is registered online
The device can be operated by one hand
The handheld probe is designed to reach small places easily
Large LCD back-lit display
Graphical icon menu

Technical specifications for the handheld helium leak detector

Technical specification	Value/Information
Detector	Micro thermal conductivity detector (MTCD). The sensor is poison resistant with overrange protection
Operation	Battery type: 4 x alkaline AA size or NiMH (rechargeable). An average of 40 hours of continuous use.
Sensitivity (cc/sec)	He 1 x 10-5
Accuracy	– 5% Displayed reading – One digit
Response	T90 = 1 second rise and clear down
Sound	Flashing LED and 90 dBA (at 10 cm) audible sounder
Calibration	Factory calibrated in accordance with the ISO 9001:2008 Quality Management System.
Temperature	Operating: -20 to +60 oC, -4 to 140 oF. Storage: -20 to +70 oC, -4 to 158 oF. Humidity: 0 to 99% RH (non-condensing).
Flow rate	2 cc/min
Weight and dimensions	Instrument with probe: 390 x 60 x 49 mm, 15.5 x 2.3 x 1.9”. Case:420x320x97mm,16.5×12.5×3.8”. Instrument: 0.45 kg, 1 lb, Packed 1.6 kg, 3.5 lb.
