40 inch touch screen overlay delivers a memorable interactive experience

40 inch touch screen overlay [40” Touchfoil]

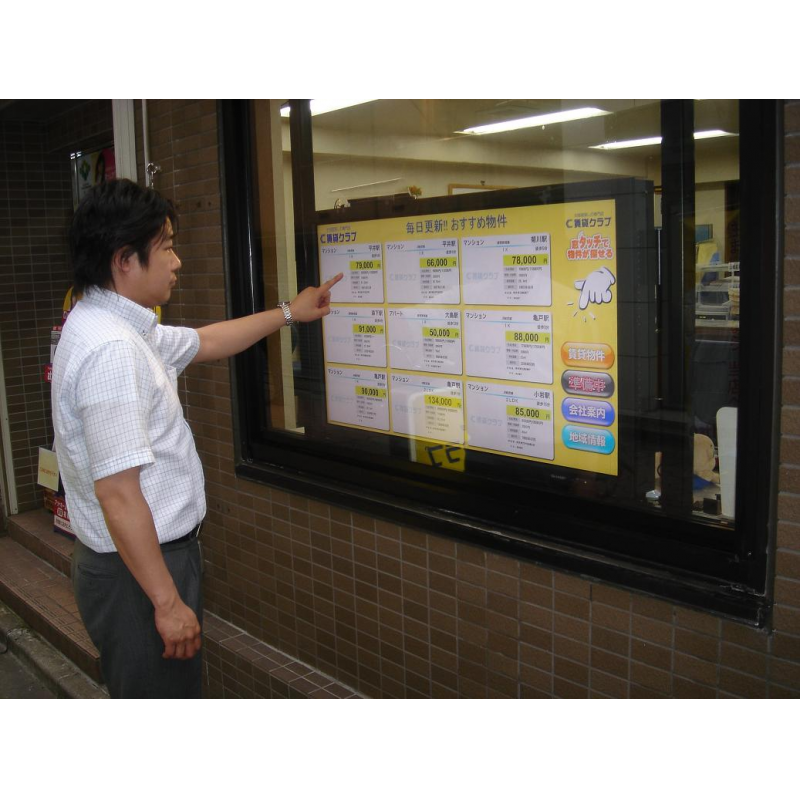

A man using a 40 inch touch screen overlay shop window display

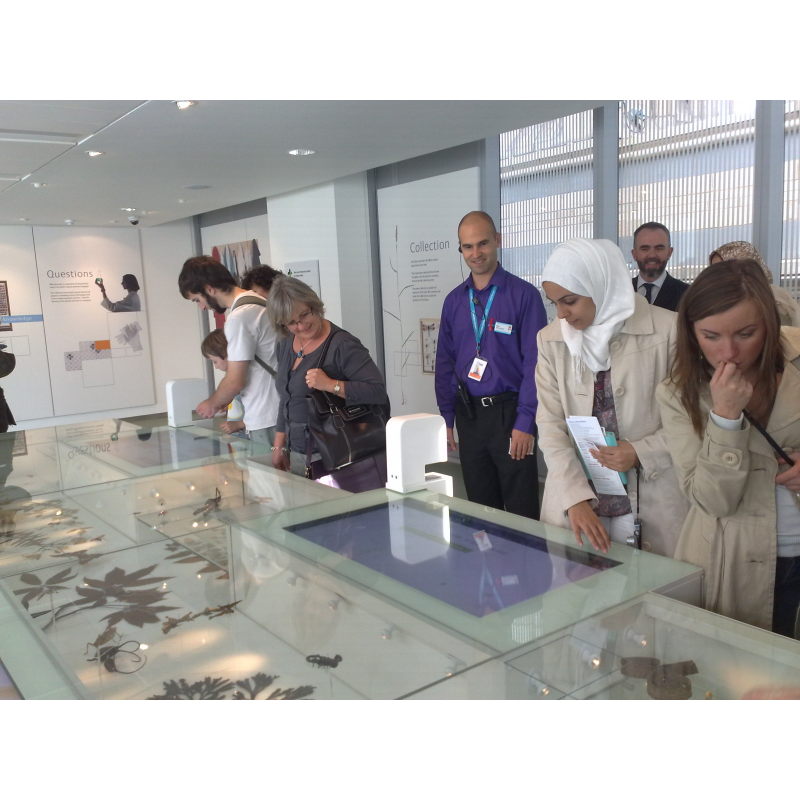

People using a 40 inch touch screen overlay touch table

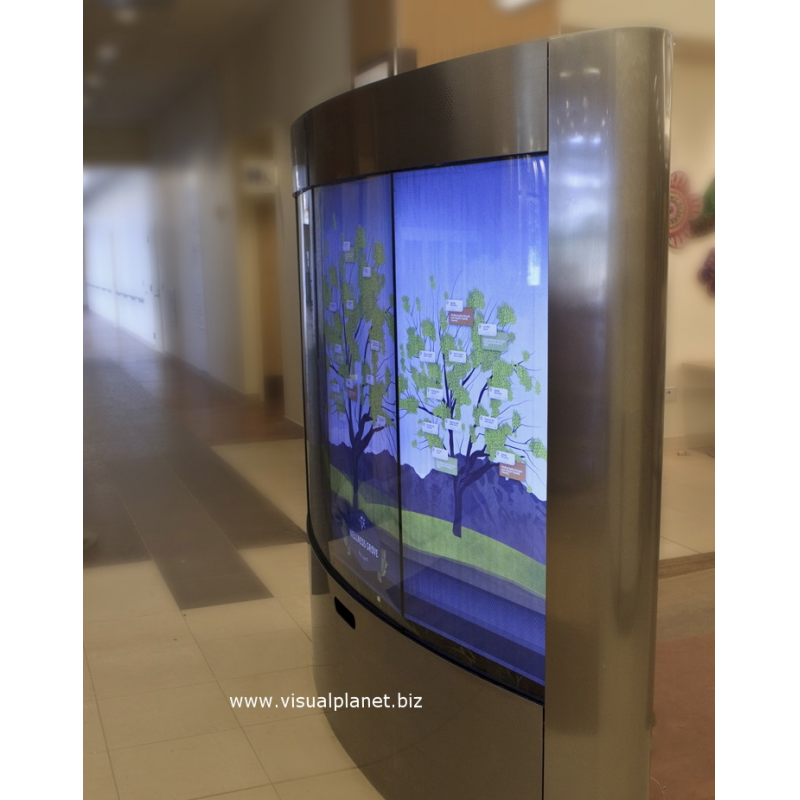

A curved touch screen using a 40 inch touch screen overlay

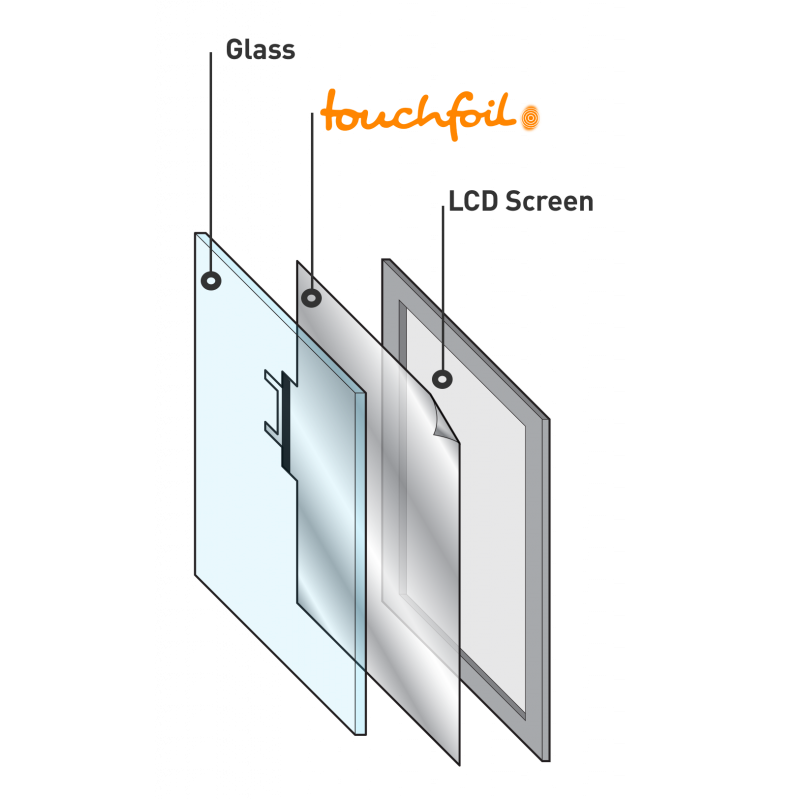

An assembly diagram for a 40 inch touch screen overlay display

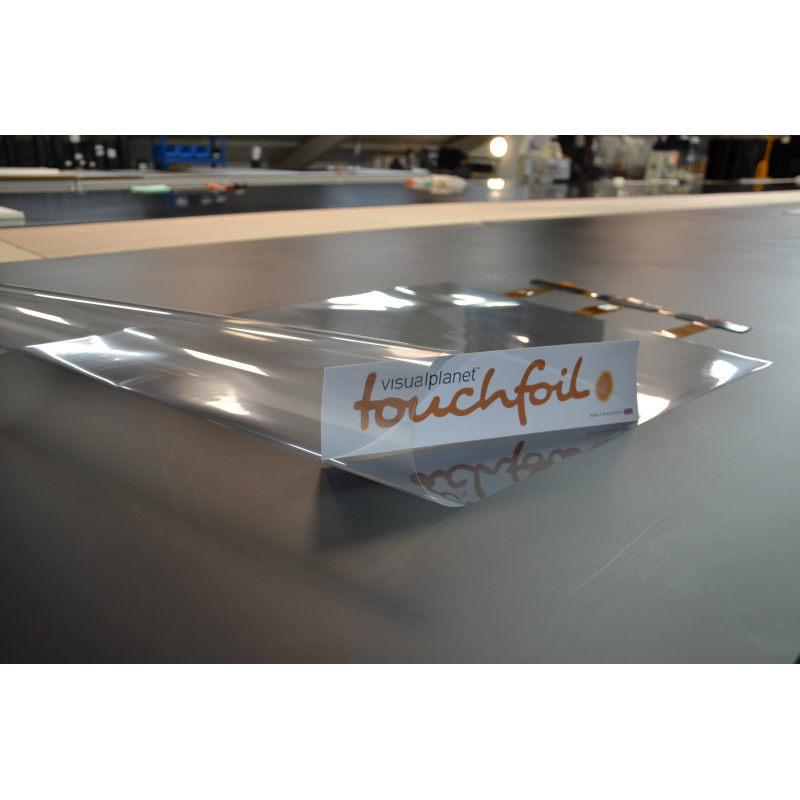

A VisualPlanet 40 inch touch screen overlay

A 40 inch touch screen overlay allows you to convert an LCD monitor into an interactive display. Overlays are ideal for upgrading your existing LCD screens.

Projected capacitive (PCAP) overlays are reliable, weatherproof and precise. You get the best touch screen experience in all conditions.

Contact VisualPlanet to find out more.

Contact Visualplanet Request a Quote Request Documentation

40 inch touch screen overlay for indoor and outdoor environments

A VisualPlanet PCAP touch foil transforms a glass surface into a touch screen. Simply laminate the PCAP overlay onto the back of a glass panel and mount the glass on an LCD screen to create an engaging, interactive experience.

You benefit from the advantages of a touch screen without the cost of investing in new displays.

The 40 inch touch screen overlay is available in dual or multi-touch options, allowing multiple people to use the screen at the same time. You can apply the overlay to curved glass for the most engaging touch screen experiences.

VisualPlanet’s PCAP overlays are robust, waterproof and long-lasting. The overlay can be laminated onto thick glass to protect the LCD screen from damage. The display functions reliably in all conditions and delivers maximum return on investment.

You can purchase your PCAP overlay individually or already applied to glass. VisualPlanet works with leading glass manufacturers to provide their Touchglass^TM product. Customised glass printing is available on flat or curved glass.

The 40 inch touch screen overlay is ideal for a range of applications

Touch screen digital signage
Interactive shop windows
Conference room displays
Museum and educational displays
Touch screen tables
Public information points and wayfinding

VisualPlanet is the creator of the market-leading Touchfoil^TM product. The company has over 15 years of experience and offers a two-year warranty and excellent customer support.

To discuss the best touch screen solution for you, contact VisualPlanet today.

Features and benefits of a PCAP overlay

Works through glass 2 to 10 millimetres thick	Thick glass protects the LCD screen from damage. The screen has a long life, delivering the maximum return on investment.
Dual touch or multi-touch available	Multi-touch responds to 32 touches at the same time. You can deliver the most engaging touch screen experience.
Weatherproof and reliable	VisualPlanet’s 40 inch touch screen overlay works in hot, cold and wet weather. PCAP foils are suitable for use with enclosures rated up to IP68. You benefit from a reliable touch screen in all conditions.
Works on flat or curved glass	Curved glass creates the most distinctive interactive displays.
Works through gloves	You benefit from maximum utilisation of the touch screen in cold weather. Also ideal for industrial and sterile environments.

PCAP overlay technical specifications

Detection method	Projected capacitive using a 10-micrometre copper sensing array.
Size	40 inches (15 to 85 inches also available).
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi-touch: 32 as standard. Up to 40 available on request. Dual touch: 2.
Speed of response	6 to 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	-10°C to +60°C.
Humidity	95% at +60°C.
