55 inch touch screen overlay creates engaging interactive experiences

55 inch touch screen overlay [55” Touchfoil]

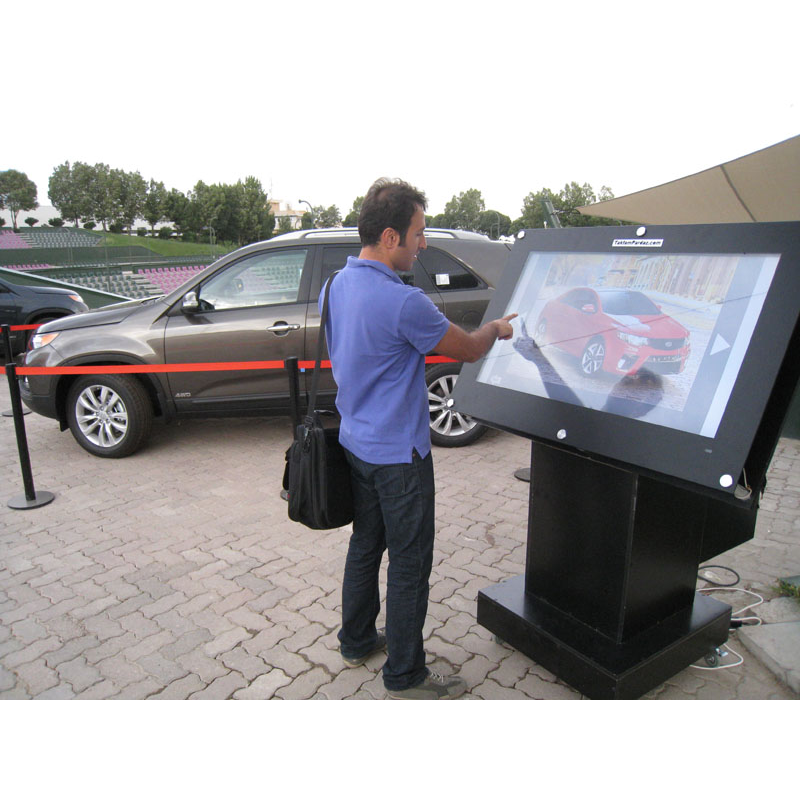

A man using a 55 inch touch screen overlay kiosk

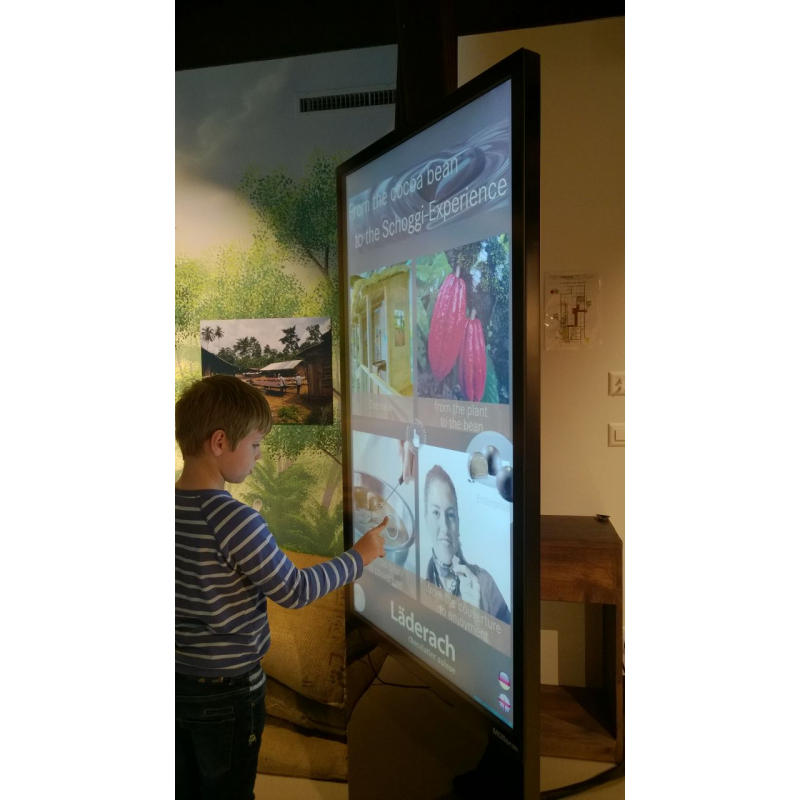

A boy using an interactive totem made with a 55 inch touch screen overlay

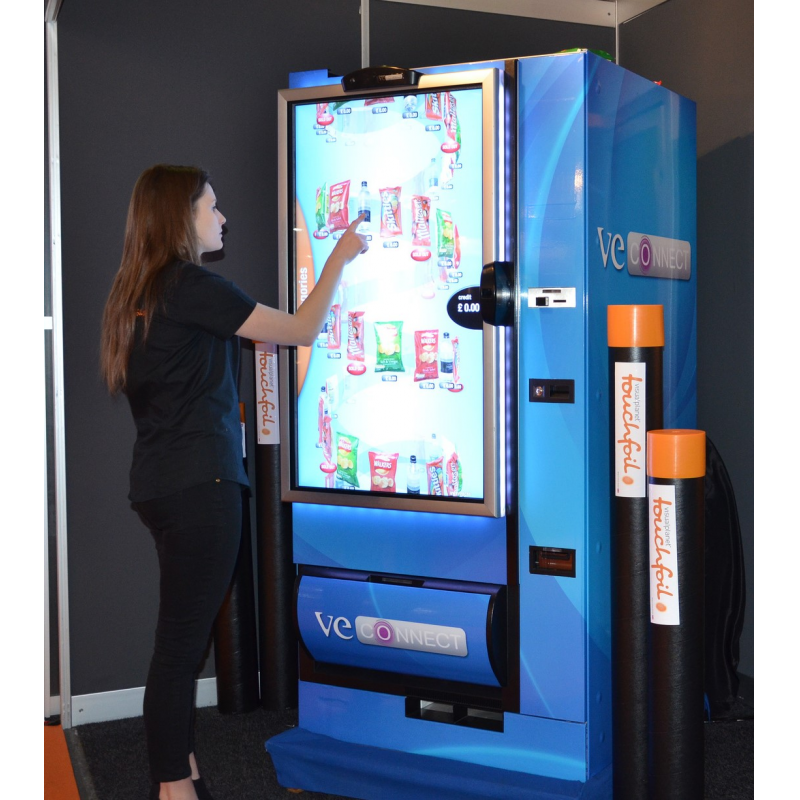

A woman using a 55 inch touch screen overlay vending machine

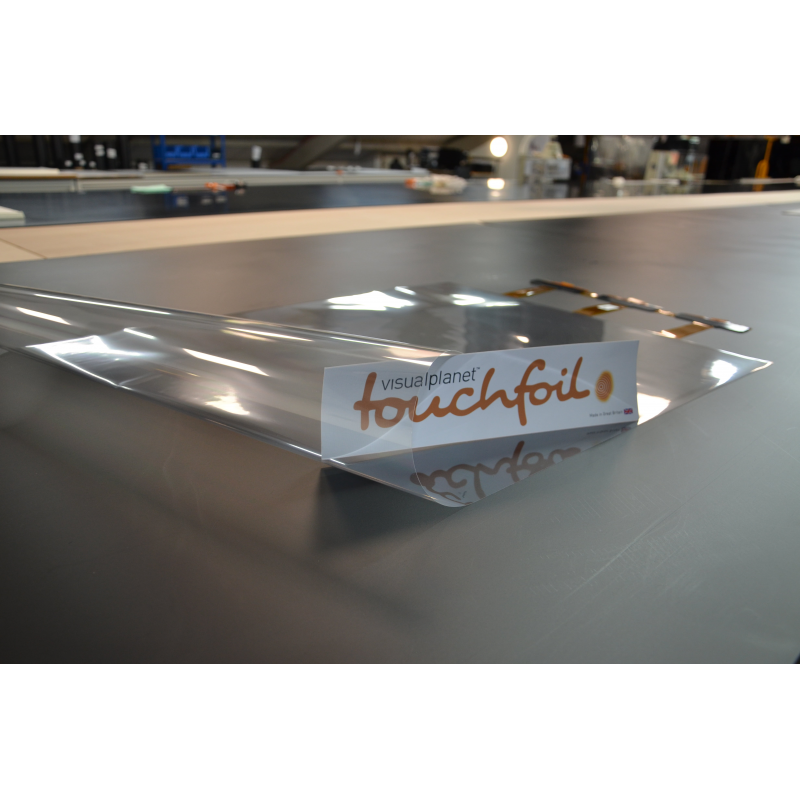

The 55 inch touch screen overlay from VisualPlanet

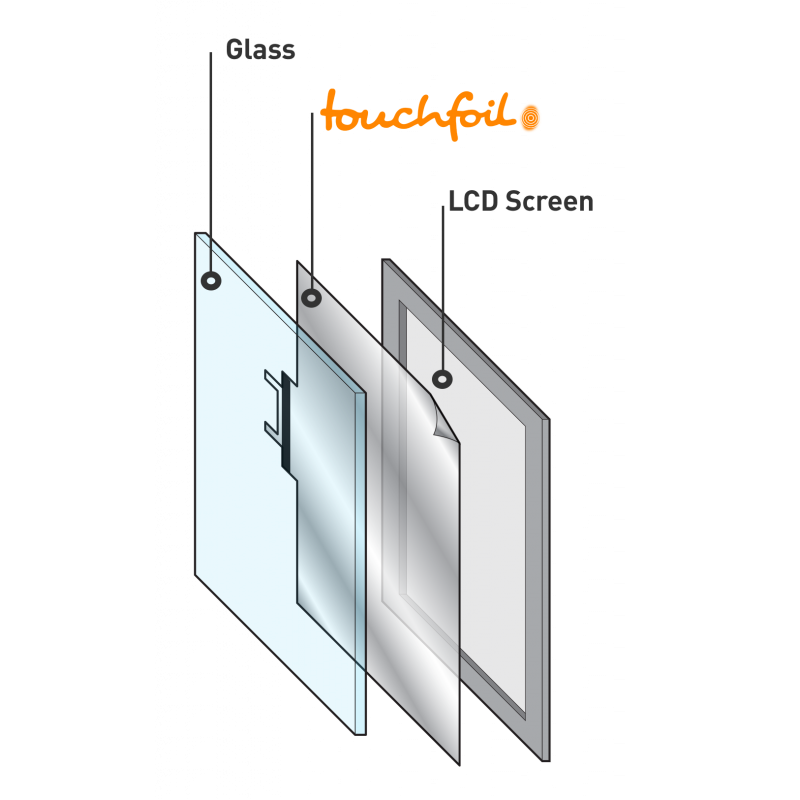

An assembly diagram for a 55 inch touch screen overlay display

Do you want a touch screen without the cost of new LCD displays?

The 55 inch touch screen overlay uses projected capacitive (PCAP) technology to convert a glass panel into an interactive surface. Mount the glass on an LCD screen or project an image onto the glass to create a unique touch screen experience.

Read on for more information.

Contact Visualplanet Request a Quote Request Documentation

55 inch touch screen overlay for large interactive displays

VisualPlanet is the leading manufacturer of PCAP touch screen foils. An interactive foil laminates to a glass panel to convert it into a touch-sensitive surface.

By mounting the glass onto your existing LCD screens, you receive the benefits of touch screen technology, without the expense of new screens.

VisualPlanet has over 15 years of experience in manufacturing PCAP overlays for international customers. The company provides a consultative sales process to help you ideal the best touch screen solution. VisualPlanet can advise on the best glass and enclosures so that your touch screen operates reliably in any environment.

PCAP overlays are suitable for a range of touch screen applications:

Interactive digital signage

The 55 inch overlay is ideal for touch screen digital signage. The overlay is suitable for use with enclosures rated up to IP68 and operates reliably from -10°C to +60°C. Your interactive signage works in all weather. You benefit from increased system uptime and the maximum return on investment.

Industrial touch screens

VisualPlanet’s PCAP touch screen foils work through gloved hands. Your employees’ workflow is not interrupted and you benefit from increased manufacturing productivity.

Interactive retail displays

Touch screen displays are effective at boosting customer engagement and generating revenue. Use the 55 inch touch screen overlay to create a unique interactive shop window or retail kiosk.

Touch screen vending machines

PCAP foils allow you to create distinctive touch screen vending machines that attract customers and generate revenue. The PCAP screen has a long life, with reduced downtime for maximum profitability.

Wayfinding kiosks

The 55 inch touch screen overlay is suitable for use in indoor and outdoor environments. Ideal for wayfinding kiosks in shopping centres, cities and tourist areas. The screen operates in hot, cold and wet weather, allowing year-round use.

Interactive tables

VisualPlanet’s PCAP touch screen foils offer incredible accuracy and speed. They are ideal for interactive tables in museums and educational settings. VisualPlanet’s multi-touch foil responds to 32 touches at the same time, allowing multiple people to use the touch screen simultaneously.

To discuss your touch screen requirements, contact VisualPlanet.

55 inch touch screen overlay technical specifications

Detection method	Projected capacitive using a 10-micrometre copper sensing array.
Size	55 inches (15 to 85 inches also available).
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi-touch: 32 as standard. Up to 40 available on request. Dual touch: 2.
Speed of response	6 to 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	10°C to +60°C.
Humidity	95% at +60°C.
