Large format touch screen display for unique, interactive experiences

Large format touch screen display [15” to 85” Touchfoil]

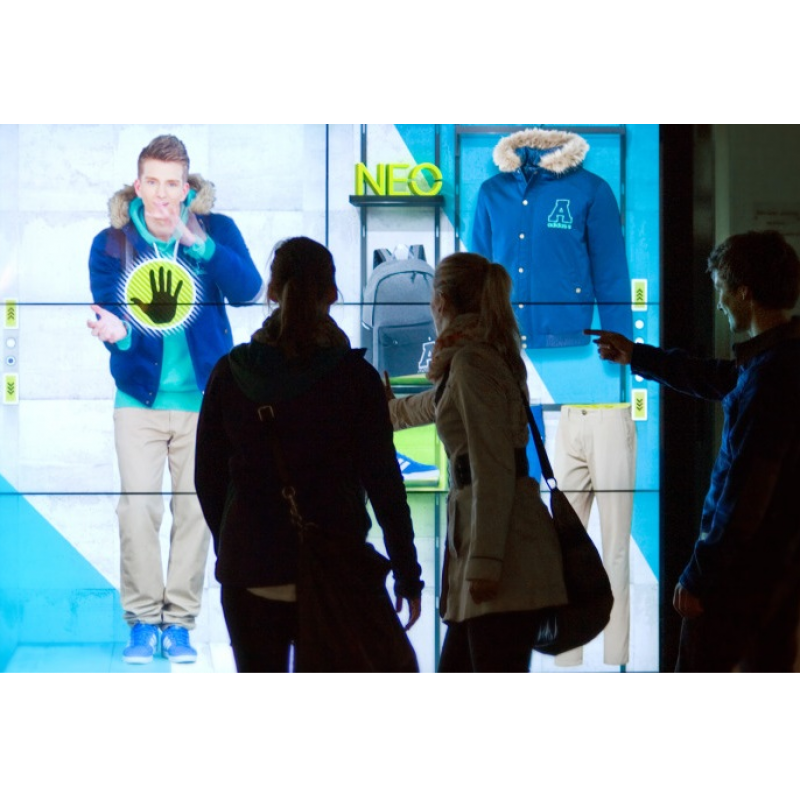

A couple using a large format touch screen display shop window

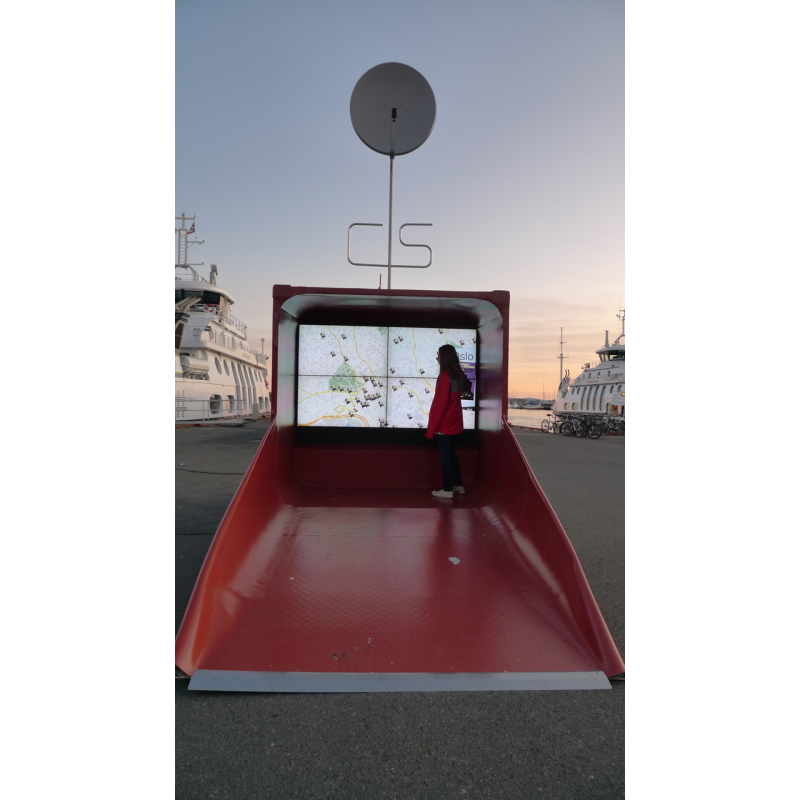

A woman using a large formt touch screen display wayfinder

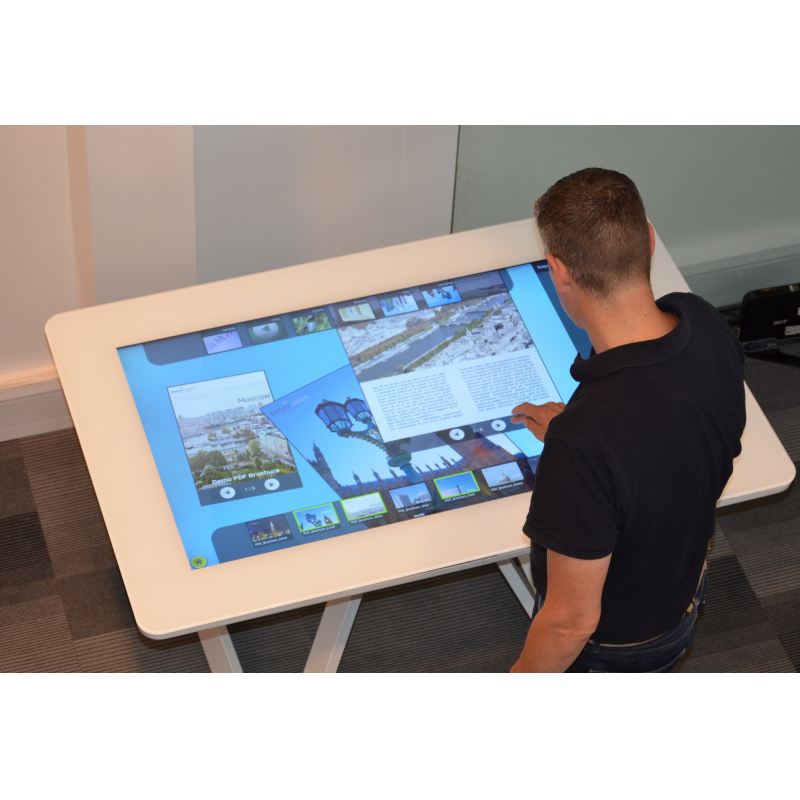

A man using a large format touch screen display table

A large format touch screen display touch foil

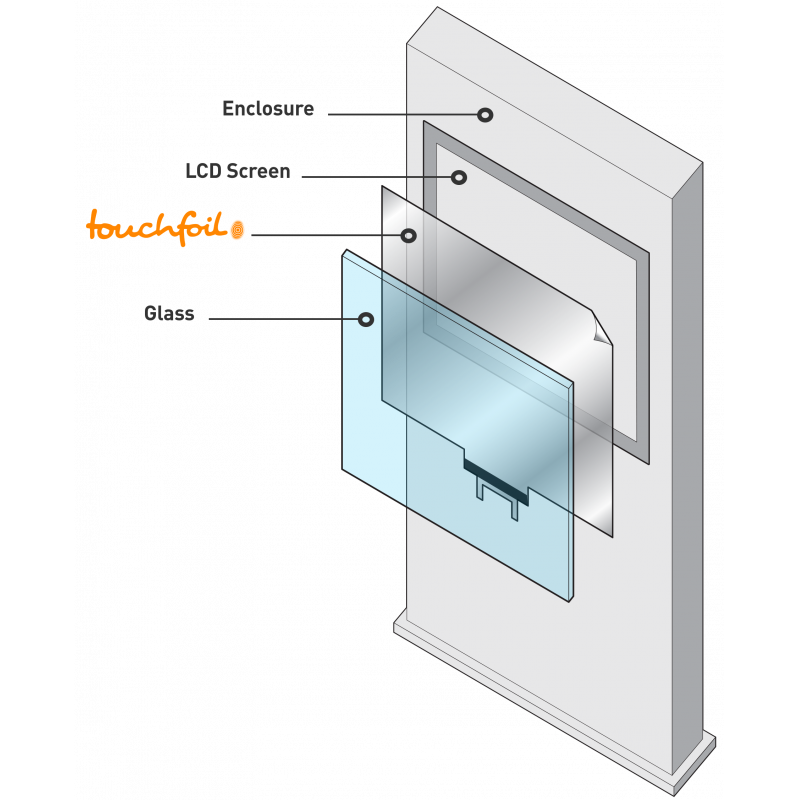

An assembly diagram for a PCAP large format touch screen display.

Do you need a large format touch screen display? Projected capacitive (PCAP) foils allow you to convert any glass surface into a touch screen.

PCAP foils make it easy to create unique, interactive experiences that engage customers with your brand. Ideal for digital signage, conference rooms, museums and more.

Contact VisualPlanet today.

Contact Visualplanet Request a Quote Request Documentation

Large format touch screen display for unique, interactive experiences

VisualPlanet is the leading manufacturer of PCAP touch sensors. By laminating a PCAP foil onto the back of a glass panel, you turn it into a touch-sensitive surface. You can create a touch screen through a shop window or convert an LCD screen into an interactive device.

VisualPlanet provides PCAP foils in bespoke shapes and sizes. Sizes over 100 inches are available on request, allowing you to create memorable, touch screen experiences that engage customers with your brand.

A PCAP large format touch screen display is ideal for a range of applications:

Touch screen digital signage
Interactive shop windows
Conference room displays
Museum and educational displays
Touch screen tables
Public information points

To discuss the best large format touch screen solution for you, contact VisualPlanet.

Features and benefits of a large format PCAP screen

Features	Benefits
Works through glass 2 to 10 millimetres thick	Thick glass protects the LCD screen from damage. The screen has a long life, delivering the maximum return on investment.
Dual or multi- touch available	Multi-touch responds to 32 touches at the same time. Ideal for a large format touch screen display because lots of people can use the screen simultaneously.
Weatherproof and reliable	VisualPlanet’s PCAP foils work in hot, cold and wet weather. PCAP foils are suitable for use in enclosures rated up to IP68. You benefit from a reliable touch screen all year.
Available in custom shapes and sizes	Choose the best size for your needs. Choose flat or curved glass. You can create unique touch screens that match your exact requirements.
Works through gloves	Ideal for use in cold weather, as users can interact with the display through gloved hands. You benefit from maximum utilisation of the touch screen in all weather.

PCAP foil technical specifications

Detection method	Projected capacitive using a 10-micrometre copper sensing array.
Sizes	15 to 85 inches (larger available on request).
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi-touch: 32 as standard. Up to 40 available on request. Dual touch: 2.
Speed of response	6 to 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	-10°C to +60°C.
Humidity	95% at +60°C.
