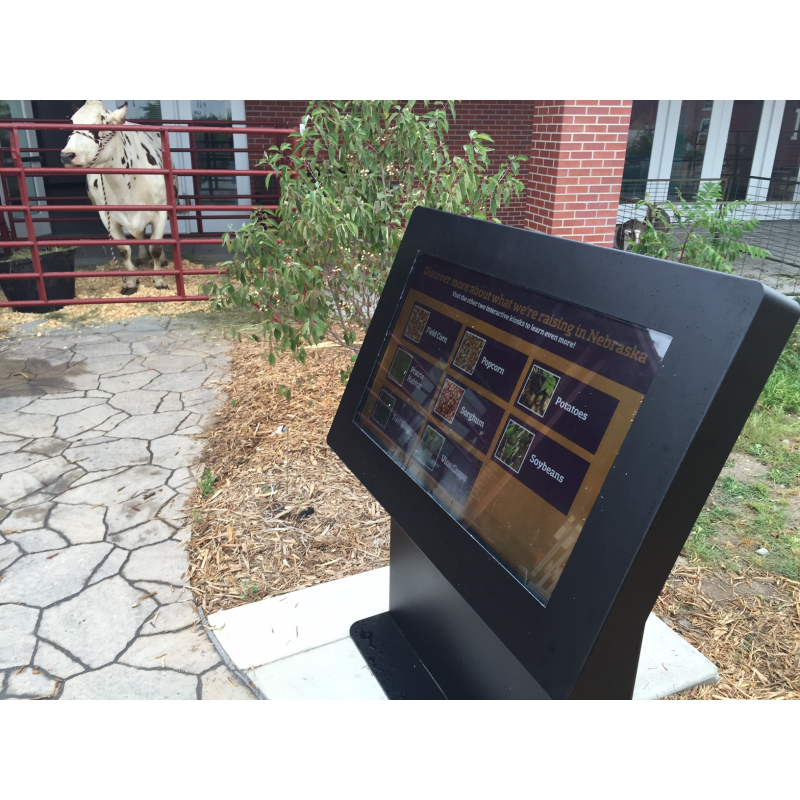

Multi touch screen overlay applied to a kiosk with cow in the background

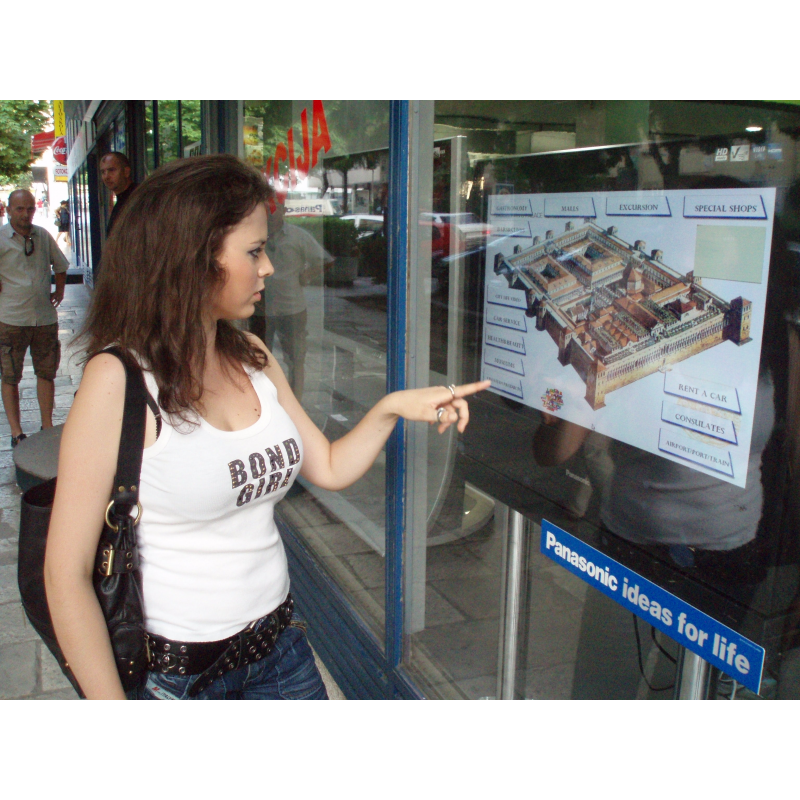

Multi touch screen overlay being used by woman

Multi touch screen overlay applied to glass and an LCD screen

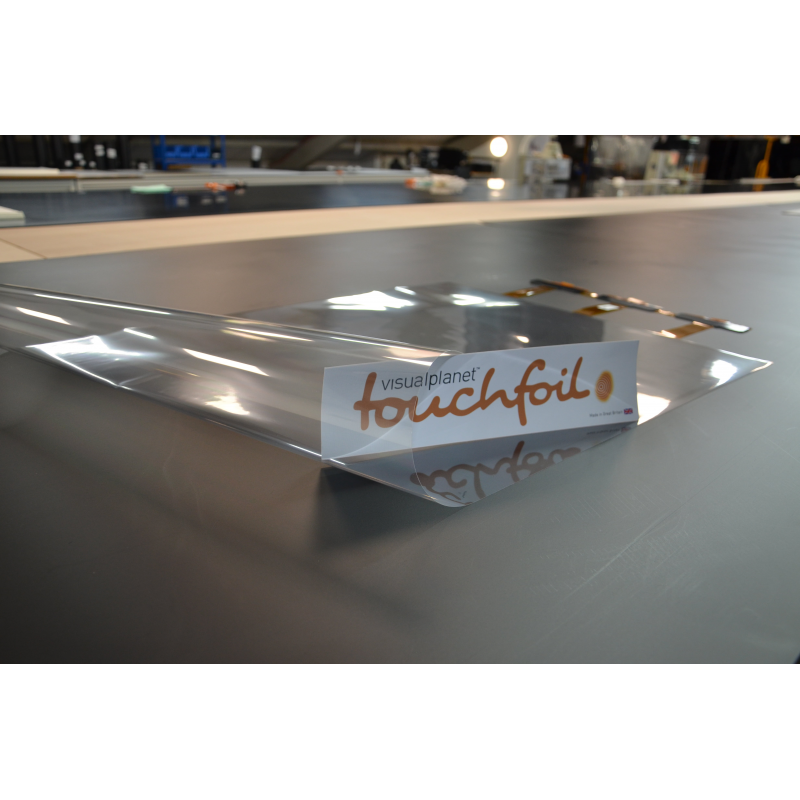

Multi touch screen overlay unpackaged by VisualPlanet

Engaging. Interactive. Immersive.

VisualPlanet’s multi touch screen overlay is designed to turn most glass surfaces into a touch screen application. Ideal for gaming machines, digital signage, retail displays and more, the interactive foil engages customers.

Contact VisualPlanet now for more information.

Contact Visualplanet Request a Quote Request Documentation

Multi touch screen overlay to engage customers

Would your business benefit from more engaged customers?

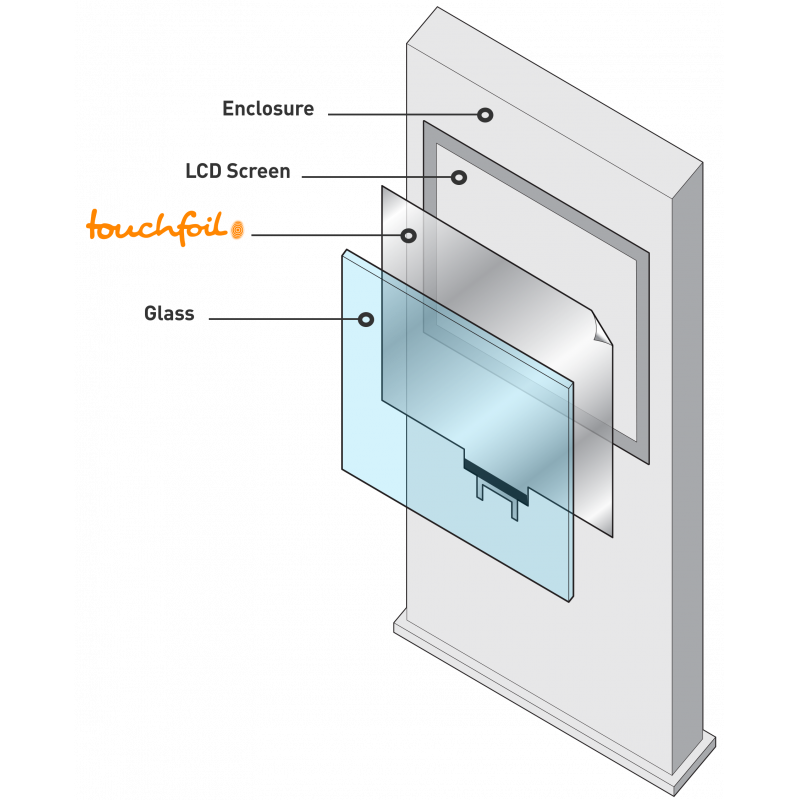

VisualPlanet has the solution. The unique, multi touch screen overlay, Touchfoiltm, converts most ordinary glass panels into a touch-sensitive surface. When attached to an LCD screen, this becomes an immersive, engaging display.

You don’t have to spend money buying a touch screen LCD display – save money and create your own with your existing screens.

After applying the touch foil to the back of 2 millimetres to 10 millimetres thick glass, your display can respond to up to 32 touches simultaneously. Several customers can experience the display together, maximising your potential return on investment (ROI).

Suitable for enclosures rated up to IP68, the weatherproof touch screen foil can be used in wet conditions, even when the customer is wearing gloves. Your profits are maximised at any time of the year, even outside in the winter months.

Working with leading glass manufacturers, VisualPlanet guarantees a quality product that protects your LCD display.

Multi touch screen overlay for a range of applications

A multi touch screen overlay can prove effective for a wide range of industries and applications, including:

Gaming machines
Vending machines
Kiosks
Interactive whiteboards
Table-tops
Interactive digital signage
Industrial touch screens
Shop windows

Available in a wide range of sizes and in flat or curved shapes, you’re guaranteed to find the right multi touch screen overlay for your application.

Features and benefits of multi touch screen overlay

Feature	Benefit
Accurate	A fast response time of 6 to 8 milliseconds improves customer experience and engagement.
Multi touch	Up to 32 touches at one time makes it an experience that people can share, maximising your potential ROI.
Weatherproof	Your touch screen can be used in any condition. Suitable for enclosures rated up to IP68.
Sensitive through thick glass	Working through glass between 2 millimetres and 10 millimetres thick, your standard display has the protection it requires.
Usable with gloves	Usable in cold and wet conditions, maximising your ROI in every season.

Multi touch screen overlay technical specifications

Detection method	Projected capacitive using a 10-micrometre copper sensing array.
Size	40 inches (15 to 85 inches also available).
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi touch: 32 as standard. Up to 40 available on request. Dual touch: 2.
Speed of response	6 to 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	-10°C to +60°C.
Humidity	95% at +60°C.
