Outdoor touch screen foils for interactive digital signage solutions

Outdoor touch screen [15” – 85” Touchfoil]

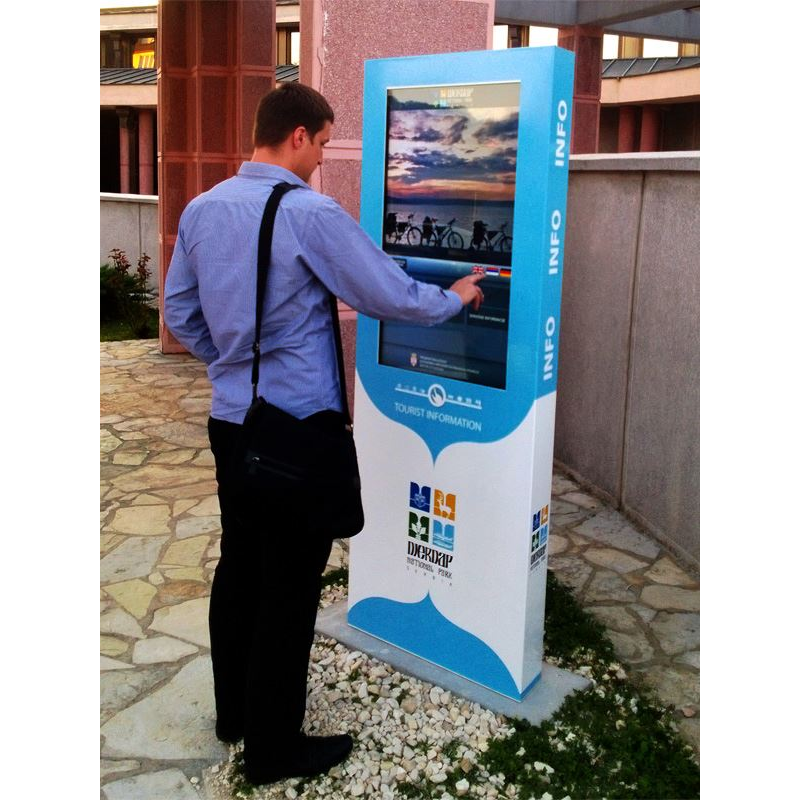

A man using an outdoor touch screen totem

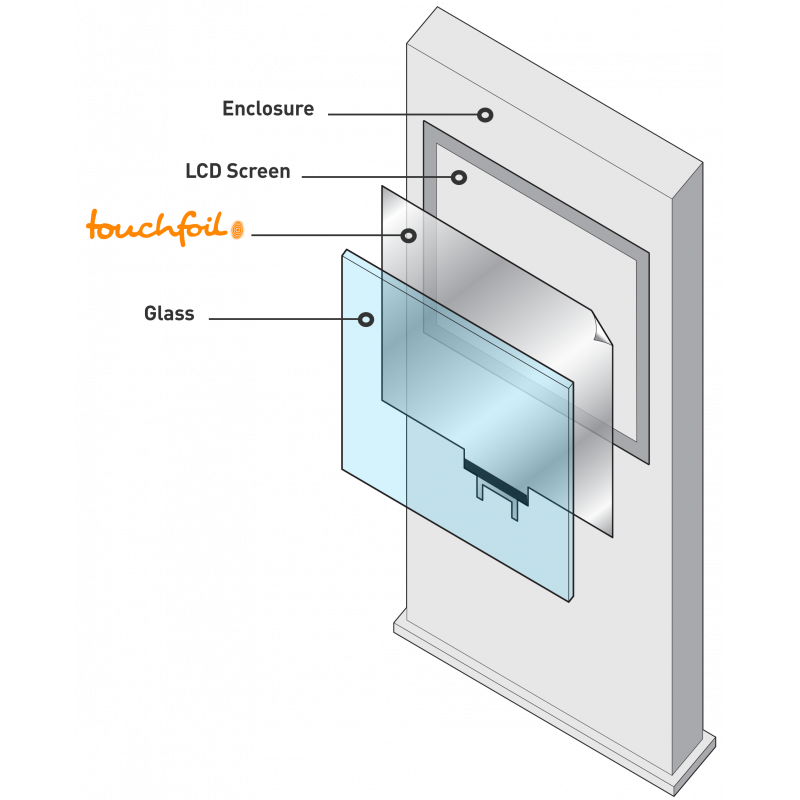

Diagram showing how a PCAP outdoor touch screen is made

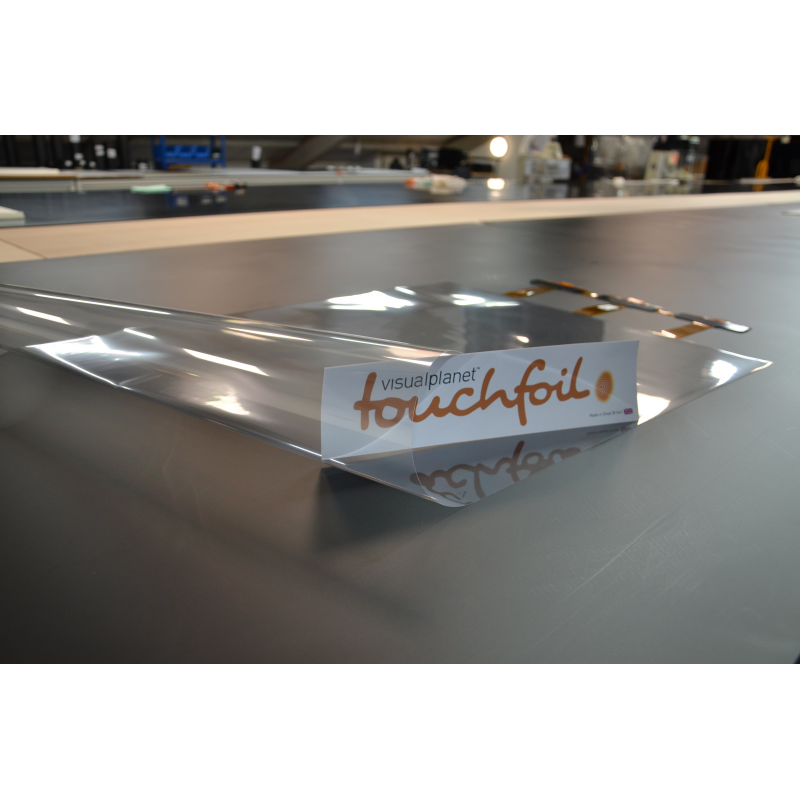

A PCAP foil before being applied to an outdoor touch screen

Outdoor touch screen foils make your LCD displays interactive, boosting customer engagement and providing a memorable experience.

VisualPlanet, the manufacturer of the outdoor Touchfoil^TM, works closely with leading glass and enclosure manufacturers to ensure you receive reliable touch screen components.

Contact us now for more information.

Contact Visualplanet Request a Quote Request Documentation

Outdoor touch screen foils are ideal for displays in a range of locations:

Public information points
Shopping centres
Car parks

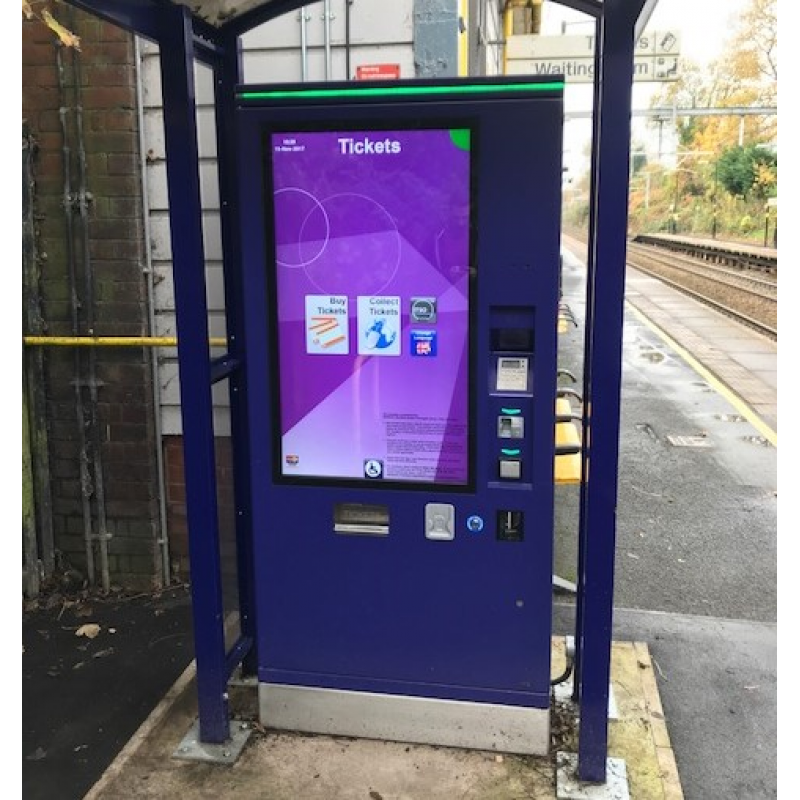

Transportation hubs - bus and train stations
Shops/restaurants
Drive thru facilities
University campuses

Features and benefits of outdoor touch screen foils

Feature	Benefit
PCAP technology	Enables high precision, multi-touch functionality, high response speed, and use of gloves. All of which improves customer experience and increases engagement.
Multi-user	Multiple people can use the screen at the same time. Ideal for the most memorable, immersive experiences.
Specialised touch foil sensors	The sensor can be used on any glass surface and is available in a range of display sizes. Choose from flexible mounting options and a choice of glass thickness.
Compliant	RoHs, REACh, EMC, FCC, and UL compliant. This ensures you fulfil the regulations in your country.
Highly customisable	The foil can be customised to include rugged touch functionality, reusable mounting, UV protection and other features to ensure fulfilment of your requirements.

Outdoor touch screen foil technical specifications

Detection method	Projected Capacitive (PCAP) using 10 micrometre copper sensing arrays.
Sizes	15 to 85 inches. Larger sizes available on request.
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi-touch: 32 as standard. Up to 40 available on request. Dual touch: 2.
Speed of response	6 – 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	10ºC to +60ºC.
Humidity	95% at 60ºC, RH non-condensing.

About VisualPlanet

VisualPlanet has more than 15 years of international experience in the manufacture and distribution of touch foils. The company has worked with organisations like Adidas, AXE, University of Oregon and Samsung to create high-performing, bespoke touch screens. VisualPlanet offers a two-year warranty and lifetime customer support.

For more information about outdoor touch screen foils, contact us now by filling out the form below.
