PCAP custom touch screen foil creates an engaging, interactive retail display

Custom touch screen [15” – 85” Touchfoil]

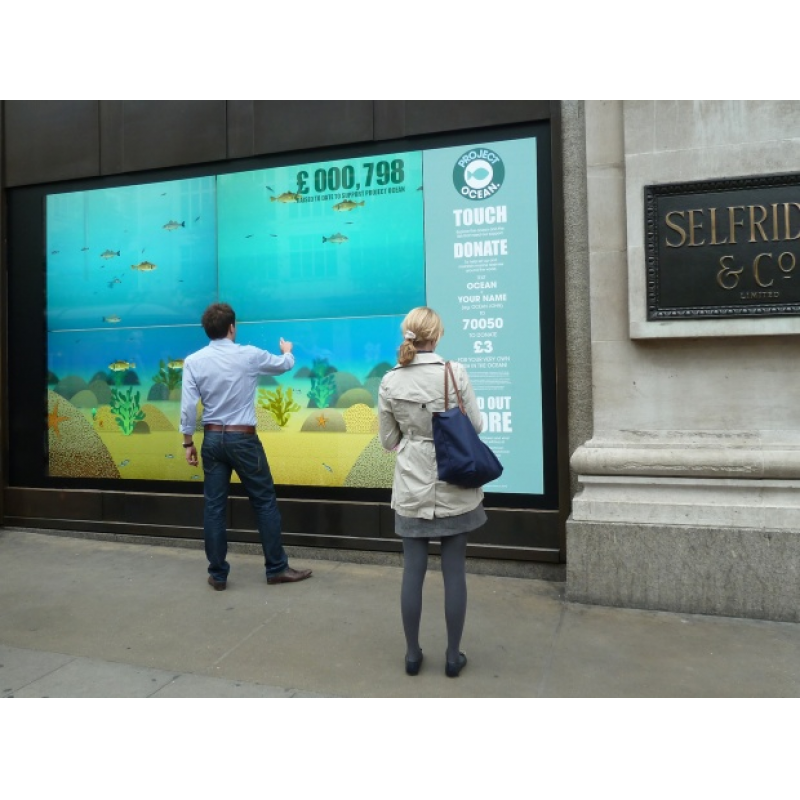

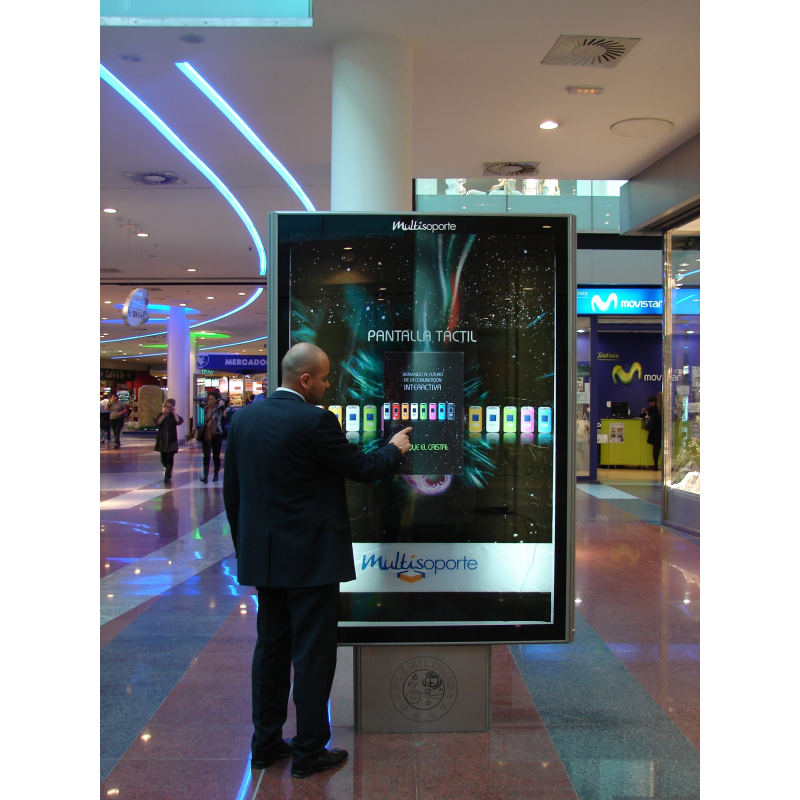

A manu using a custom touch screen in a shopping centre

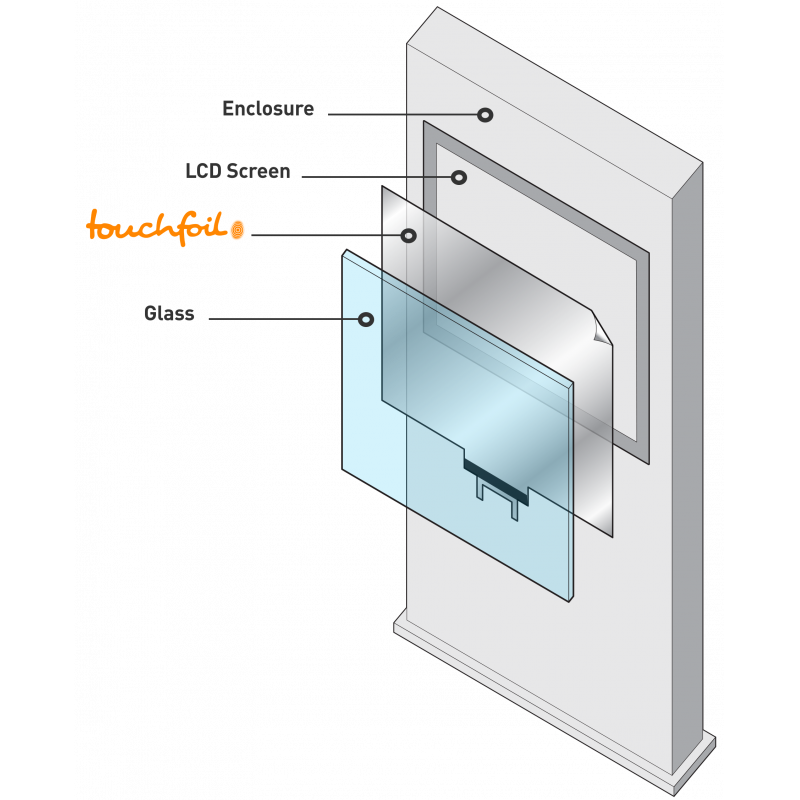

A custom touch screen construction diagram

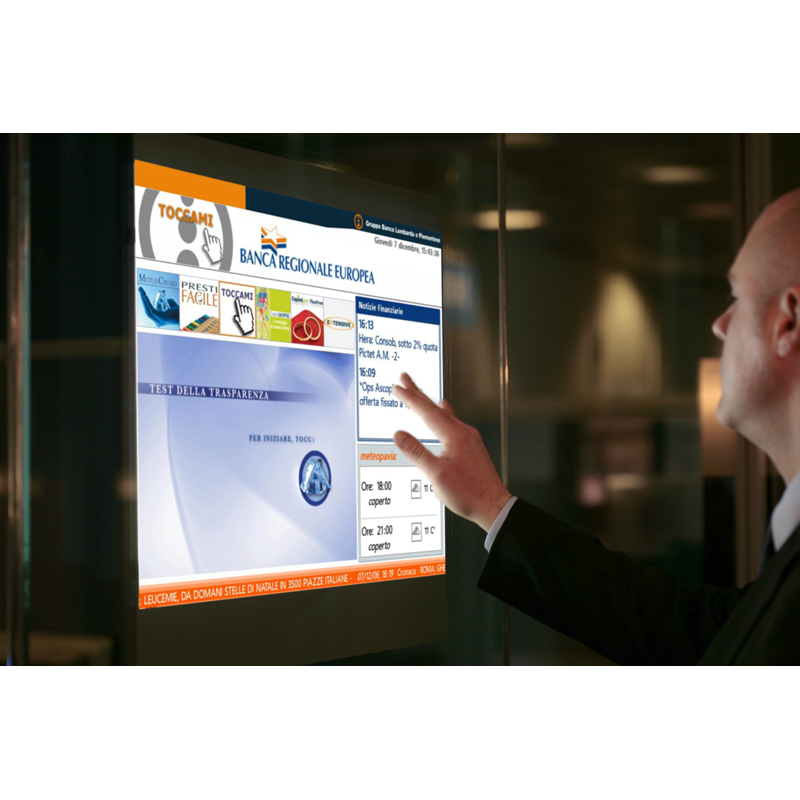

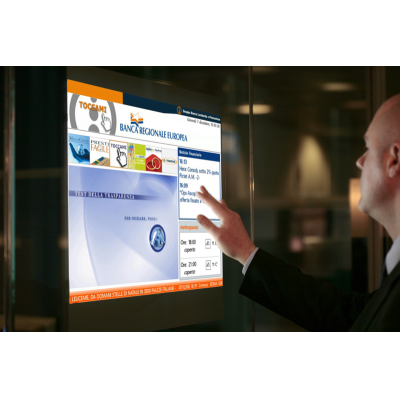

Use a projected capacitive (PCAP) foil to create a custom touch screen for retail environments. Convert your front window into an interactive experience. Use PCAP technology to convert your table into a touch surface that displays your product range. Install a self-service kiosk in your restaurant to speed up the ordering process.

Contact us now.

Contact Visualplanet Request a Quote Request Documentation

PCAP custom touch screen foil for retail environments

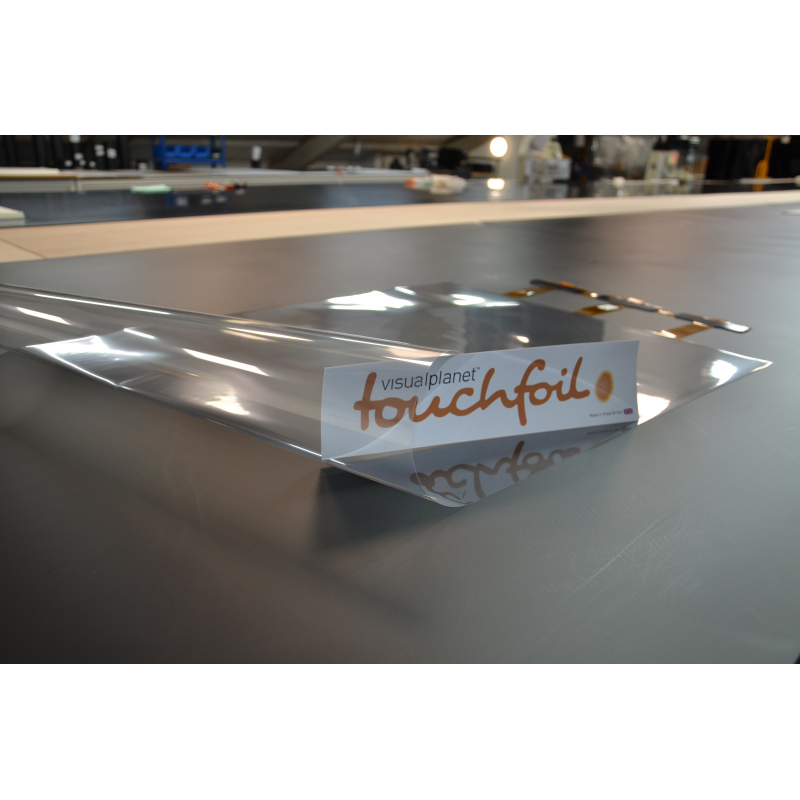

Interactive retail displays can be used in many ways to attract and convert people into paying customers. VisualPlanet, manufacturer and creator of the Touchfoil^TM, is renowned for its expertise in providing custom touch screen components.

PCAP touch screen foils are robust, long-lasting and work well in all weather. You benefit from a reliable touch screen that delivers maximum return on investment.

There are many benefits to a custom touch screen in your shop, restaurant or shopping centre:

Increase in customers
Longer visiting periods
Better focused point-of-sale product strategies
Targeted marketing promotions that yield results

Contact us now to find out more about PCAP touch screen foils for retail.

Custom touch screen foil technical specifications

Detection method	Projected Capacitive (PCAP) using 10 micrometre copper sensing arrays.
Sizes	15 to 85 inches. Larger sizes available on request.
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi-touch: 32 as standard. Up to 40 available on request. Dual touch: 2.
Speed of response	6 – 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	-10ºC to +60ºC.
Humidity	95% at +60ºC, RH non-condensing.

About VisualPlanet

VisualPlanet has more than 15 years of international experience in the manufacture and distribution of touch foils. The company has worked with many companies and organisations like Adidas, AXE and Samsung to create high-performing touch screens. VisualPlanet offers a two-year warranty and lifetime customer support.

For more information about custom touch screen PCAP foils, contact us now by filling out the contact form below!
