Projected capacitive touch film for engaging, interactive experiences

Projected capacitive touch film [15” – 85” Touchfoil]

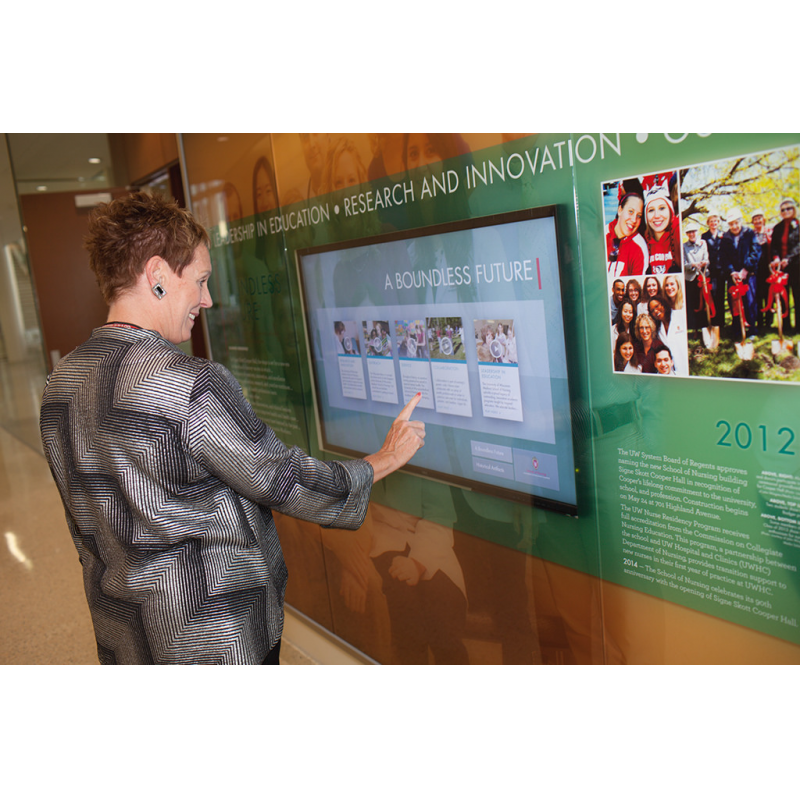

A woman using a projected capacitive touch film screen

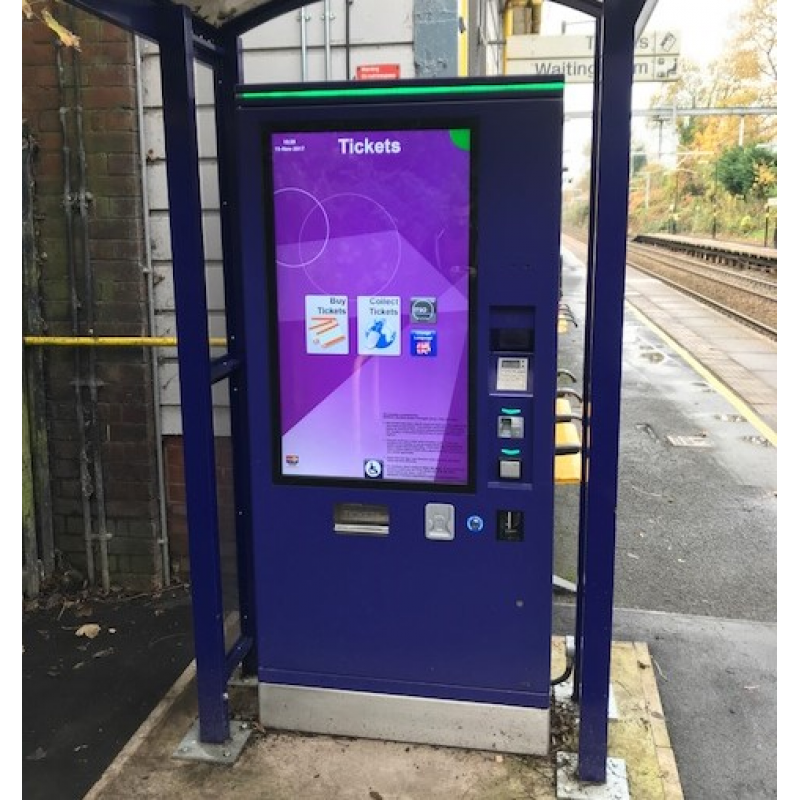

A projected capacitive touch film self-service ticket machine

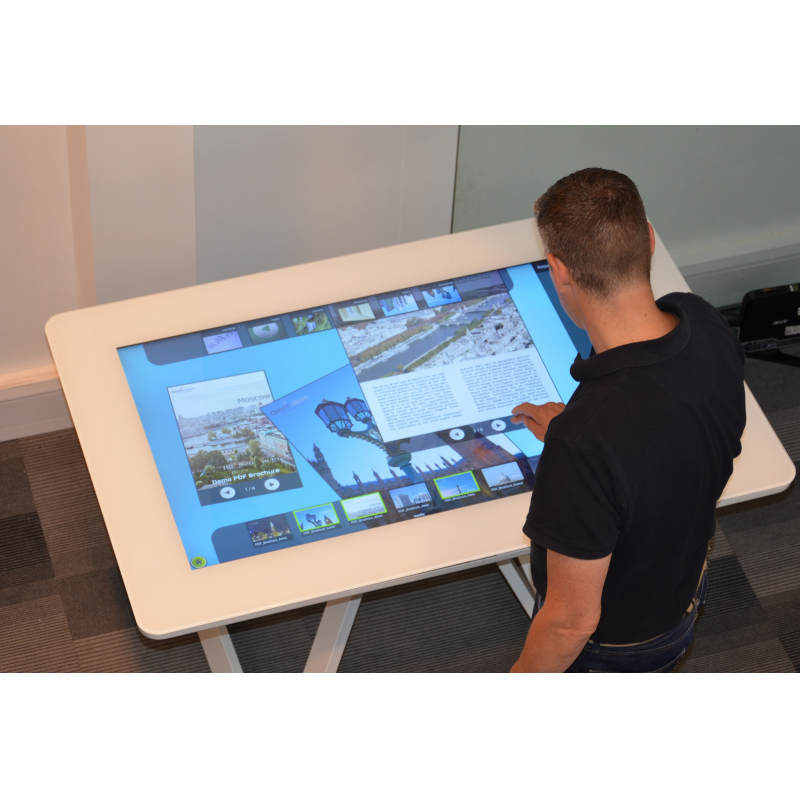

A man using a projected capacitive touch film interactive table

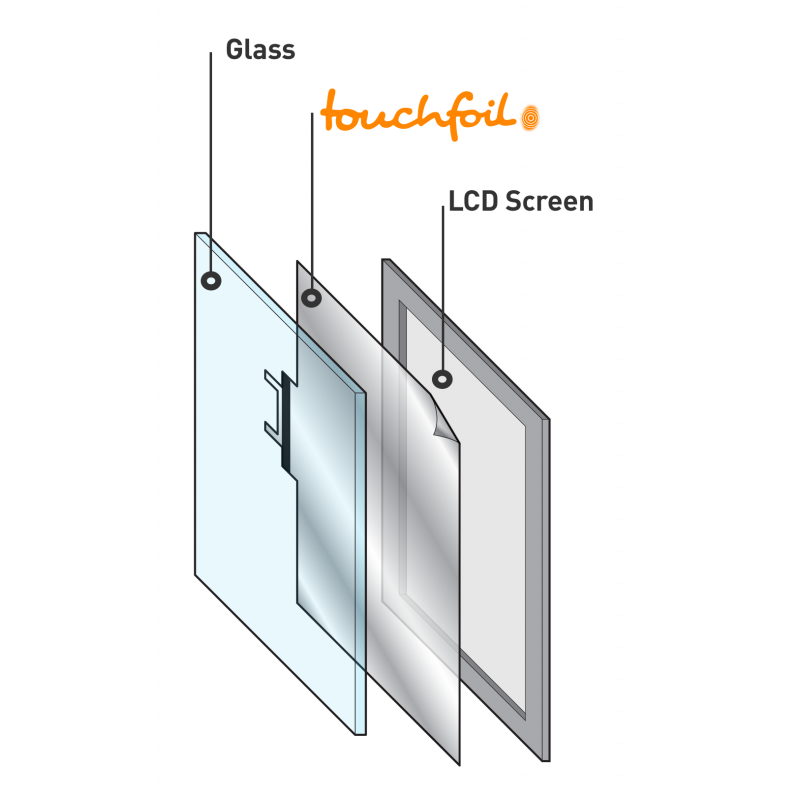

A diagram of how to assemble a projected capacitive touch film screen

A VisualPlanet projected capacitive touch film

With a projected capacitive touch film, you can turn a glass pane or LCD display into a touch sensitive surface. Projected capacitive films are ideal for displays that:

Attract customers
Enhance customer experience and engagement
Speed up the buying process
Boost brand awareness

Contact us now to use touch technology into your business.

Contact Visualplanet Request a Quote Request Documentation

Projected capacitive touch film for versatile touch screens

Use projected capacitive touch film for a range of purposes:

Digital signage	The touch film is ideal for indoor and outdoor digital signage. The film is not affected by direct sunlight, dirt, dust, moisture, or even chewing gum. This makes it ideal for your public facing displays.
Vending machines	The touch film transforms your vending machine into a reliable touchscreen. You can provide an intuitive design interface, promote your brand, and increase your sales.
Gaming/Arcade machine	PCAP film is highly-transparent, resulting in excellent image quality. Use advanced touch technology to enhance your customers’ gaming experience.
Industrial controls	Use intuitive, rugged, and reliable technology to increase productivity without removing your gloves or worrying about dirty environments or water damage.
Financial (ATM)	Touch film works through thick glass in any weather. Ideal for vandal-proof ATM machines.
Ticketing	Select a touch film that complies with local regulations as well as delivering reliable performance in unattended public environments.
Retail	Transform the customer experience by converting your shop window into a touch screen. A touch film that can be used in any weather. The touch film can also be easily removed and reused for temporary displays.
Wayfinding	Provide an instant, personalised, and easily accessible service at the touch of a screen. Furthermore, increase the ROI of your screens when no interaction is taking place by displaying interactive advertisements.

Get in touch with VisualPlanet to find out how PCAP film can be used to boost your business.

Projected capacitive touch film technical specifications

Detection method	Projected Capacitive (PCAP) using 10 micrometre copper sensing arrays.
Sizes	15 to 85 inches. Larger sizes available on request.
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi-touch: 32 as standard. Up to 40 available on request. Dual touch: 2.
Speed of response	6 – 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	-10ºC to +60ºC.
Humidity	95% at 60ºC, RH non-condensing.

About VisualPlanet

VisualPlanet has more than 15 years of international experience in the manufacture and distribution of touch foils. The company has worked with organisations like Adidas, AXE, University of Oregon, and Samsung to create high-performing, bespoke touch screens. VisualPlanet offers a two-year warranty and lifetime customer support.

For more information about projected capacitive touch film, contact us now by filling out the contact form below!
