PCAP touch screen drive thru menus generate revenue and reduce service time

Touch screen drive thru [15” to 85” Touchfoil]

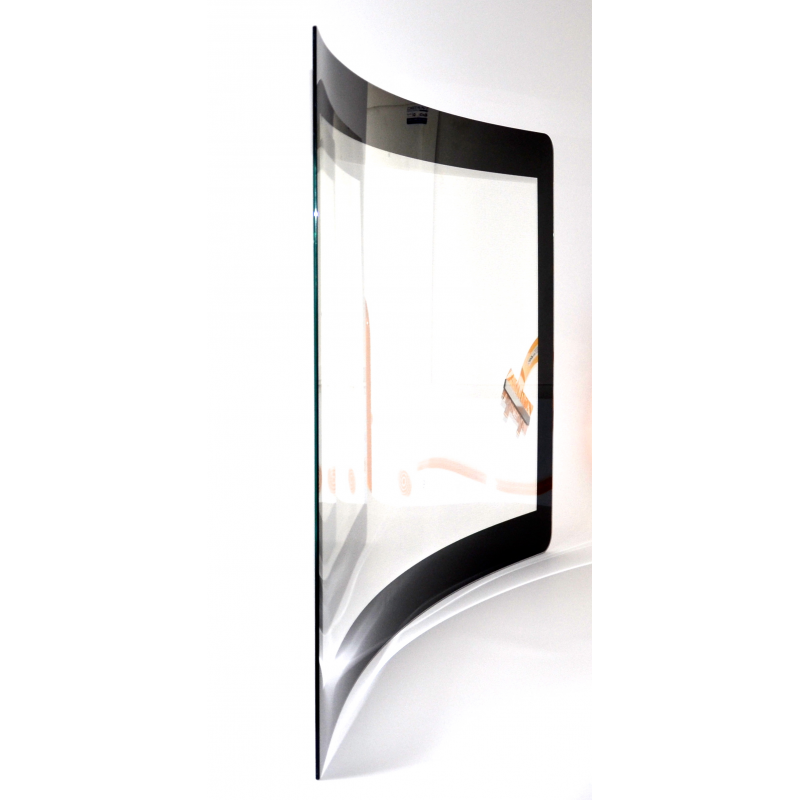

A curved glass screen for a touch screen drive thru from VisualPlanet

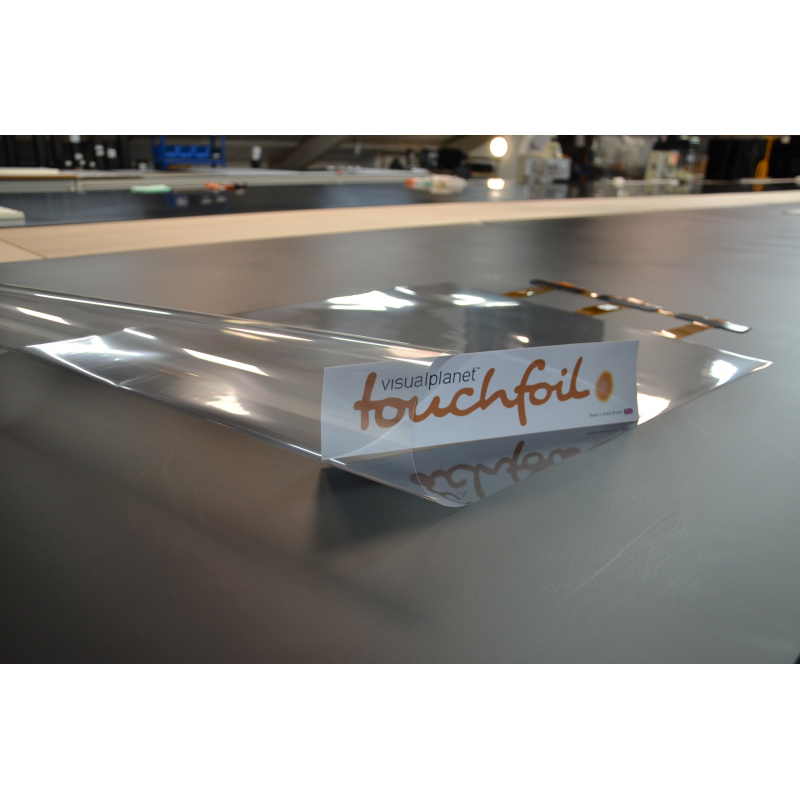

The VisualPlanet PCAP foil for a touch screen drive thru

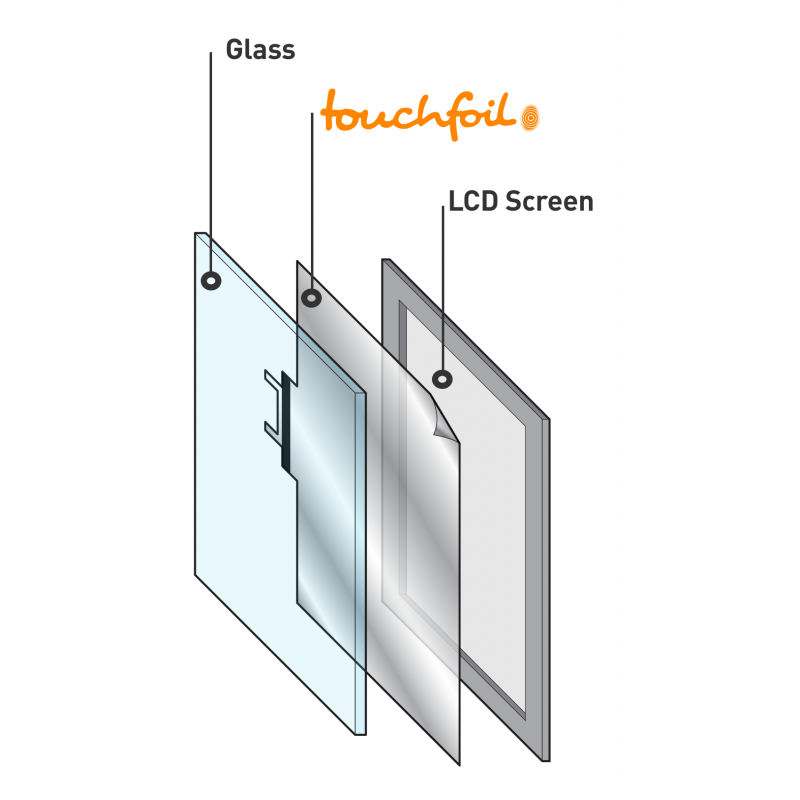

A PCAP foil touch screen drive thru assembly diagram

Projected capacitive (PCAP) touch screen drive thru boards are an attractive and profitable upgrade to static signage. By using touch screen displays, you encourage an increase in average order value, entice new customers and speed up the ordering process.

For prices and more information, contact VisualPlanet.

Contact Visualplanet Request a Quote Request Documentation

Touch screen drive thru boards using PCAP foils

Projected capacitive interactive foils allow you to create unique, engaging drive thru displays. PCAP foils are reliable, weatherproof and precise, delivering an accurate touch experience in all conditions.

You benefit from attractive displays that encourage upselling and generate revenue. Interactive displays are far more convenient than static signage, which must be constantly reprinted and replaced. With touch screen drive thru displays, you can update your menu and promotions quickly, saving you time and money.

PCAP foils for drive thru displays have a number of benefits:

Robust: You can use glass up to 10 millimetres thick to protect the LCD screen from damage. The PCAP foil laminates onto the back of the glass, so is not damaged by frequent use. Your screens have a long life and provide the maximum return on investment.
Weatherproof: VisualPlanet’s PCAP foils work in hot, cold and wet weather. For completely waterproof touch screens, use PCAP foils with enclosures rated up to IP68. You benefit from reliable touch screens all year.
Sunlight-readable: VisualPlanet’s high-quality glass is suitable for high-bright, 4K displays that are readable in bright sunlight. Your screens are attractive, readable and reliable in all conditions.
Bespoke: PCAP foils are available in a range of custom sizes from 15 inches to 85 inches. Choose the ideal size for your drive thru.
Available on glass or individually: PCAP foils are available individually or applied to glass. VisualPlanet works with leading glass manufacturers to provide custom printing and lamination on flat or curved glass. You can create unique touch screen displays that entice new business.

To find out more about PCAP touch screen drive thru displays, contact VisualPlanet today.

Projected capacitive foil technical specifications

Detection method	Projected capacitive using a 10-micrometre copper sensing array.
Size	15 to 85 inches. Larger foils available on request.
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi-touch: 32 as standard. Up to 40 available on request. Dual touch: 2.
Speed of response	6 to 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	10°C to +60°C.
Humidity	95% at +60°C.
