Touch screen kiosk provides an engaging, interactive public display

Touch screen kiosk [15” to 85” Touchfoil]

A PCAP touch screen kiosk from VisualPlanet

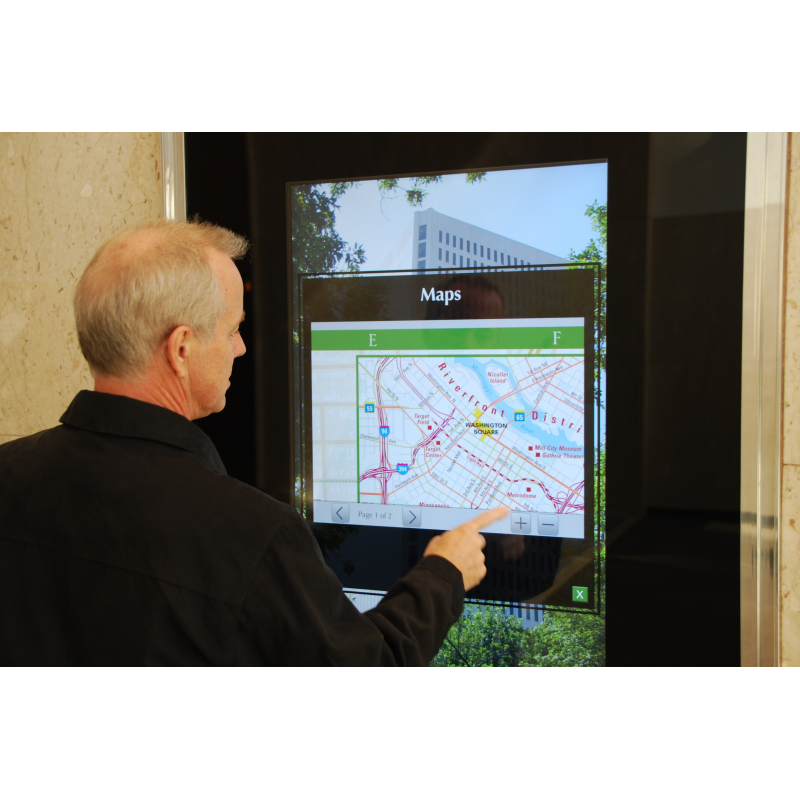

A man using a wayfinding touch screen kiosk

The VisualPlanet PCAP foil for a touch screen kiosk

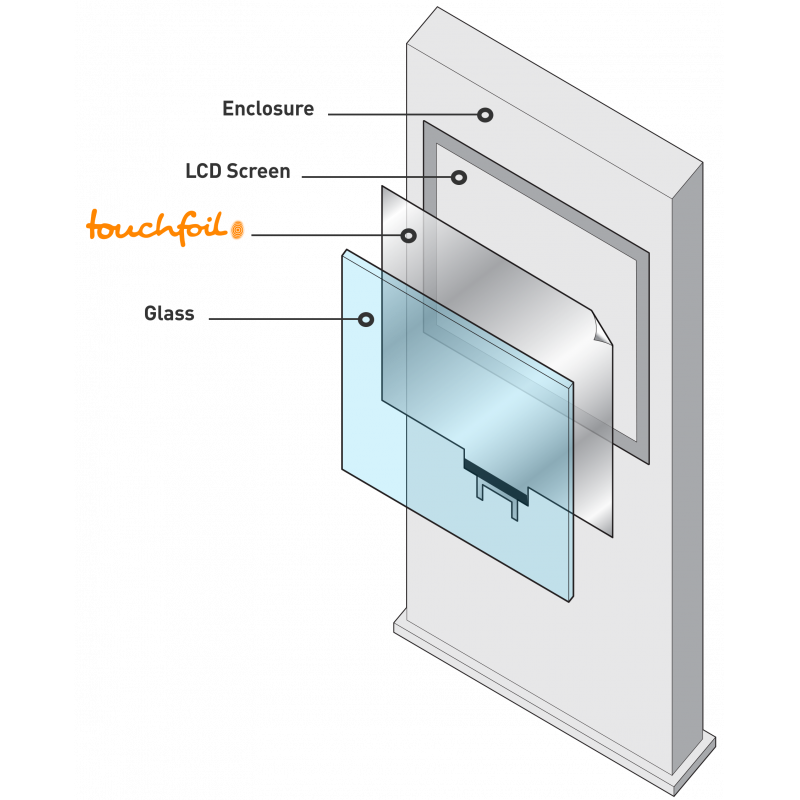

A PCAP foil touch screen kiosk assembly diagram

Easily create a touch screen kiosk with a projected capacitive (PCAP) foil. Interactive kiosks engage customers with your brand and provide self-service solutions in public places.

PCAP technology ensures that the kiosk works reliably in all conditions. Ideal for wayfinding, self-service ticketing and more.

Contact VisualPlanet to find out more

Contact Visualplanet Request a Quote Request Documentation

Touch screen kiosk for public environments

If you want to engage customers with your brand or provide a public, interactive experience, then a touch screen kiosk is the perfect solution.

VisualPlanet’s PCAP foils allow you to create interactive kiosks for any purpose:

Wayfinding: Cities, shopping centres and tourist areas can benefit from touch screen wayfinding kiosks. PCAP screens work through gloves, so the public can use them easily in cold weather.
Self-service ticket machines: Speed up a traveller’s journey by providing self-service ticket machines that operate day and night. VisualPlanet’s PCAP foil works through thick, toughened glass to make your touch screen vandal-proof.
Interactive retail displays: Enhance the customer’s buying experience and generate increased revenue by providing touch screen shopping points in your stores.
Fast food self-ordering points: Increase average order value by providing self-service ordering in your fast food restaurant. PCAP foils work in wet, hot and cold weather. Your kiosks work in all conditions for maximum utilisation and profitability.
Interactive museum exhibits: Provide a memorable learning experience with a multi-touch kiosk that responds to 32 touches at the same time. A projected capacitive foil even works on curved glass for the most distinctive touch screen displays.

How do PCAP foils work?

Laminate the PCAP foil to the back of a glass surface and mount it in front of an LCD display. The PCAP foil detects when a person touches the glass.

PCAP foils are available in a range of bespoke sizes and in dual and multi-touch options. You enjoy all the benefits of a custom touch screen kiosk without the cost of investing in new LCD displays.

Contact VisualPlanet for more information about PCAP touch screen kiosks.

PCAP touch screen foil technical specifications

Detection method	Projected capacitive using a 10-micrometre copper sensing array.
Size	15 to 85 inches. Larger foils available on request.
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi-touch: 32 as standard. Up to 40 available on request. Dual touch: 2.
Speed of response	6 to 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	-10°C to +60°C.
Humidity	95% at +60°C.
