Touch screen overlay to turn your glass surface interactive

Touch screen overlay [Touchfoil]

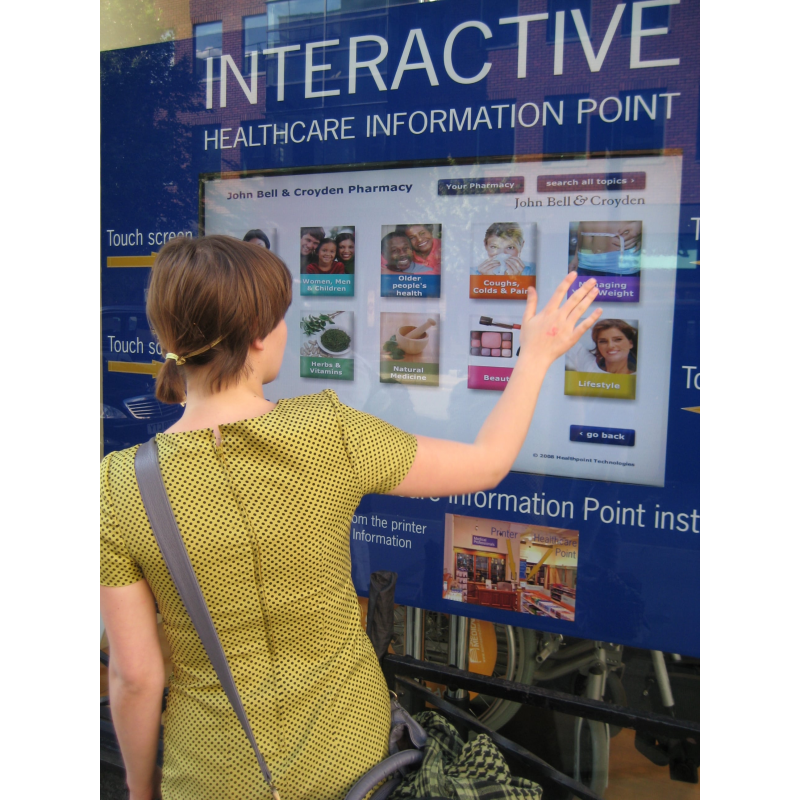

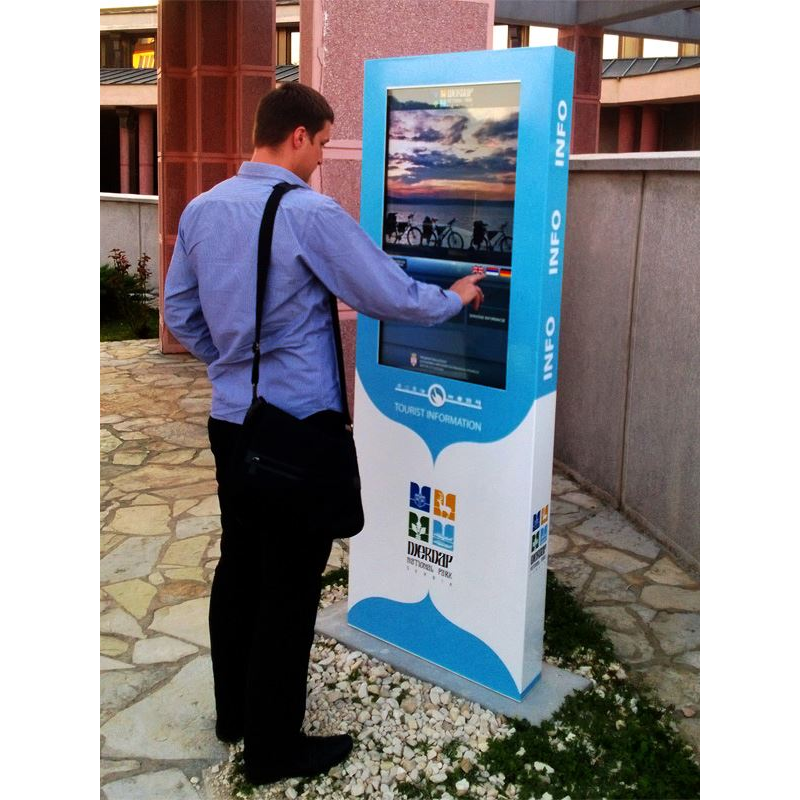

Touch screen overlay being used by a customer

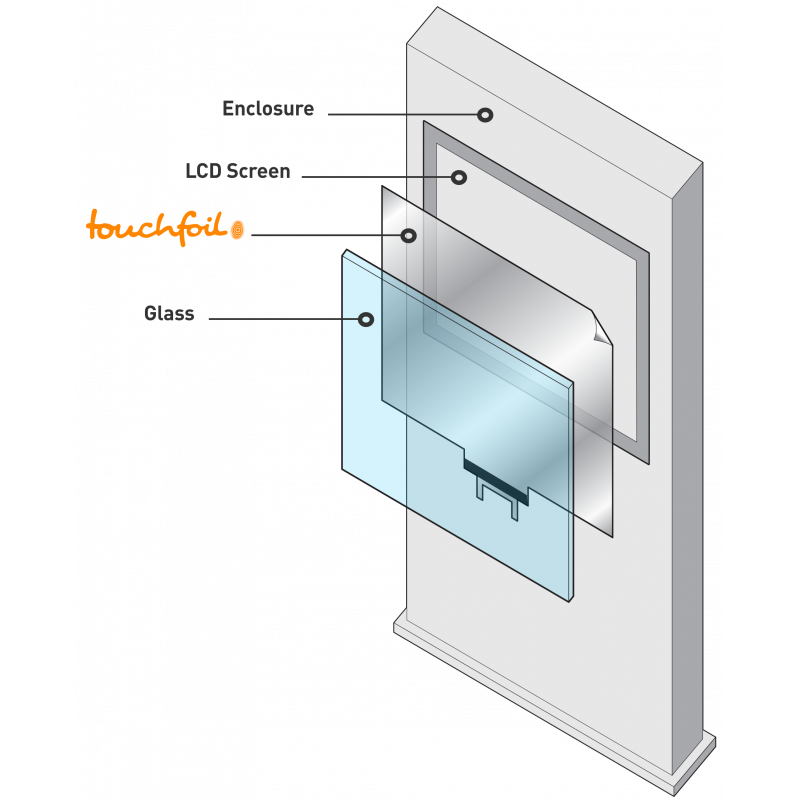

Touch screen overlay applied to glass, an LCD screen, and encased in an enclosure

Do you want to engage customers with an interactive, immersive experience?

A touch screen overlay converts a standard LCD display or glass pane into a touch screen surface. Fully waterproof, your touch screen overlay can be used with enclosures that are industry-rated up to IP68.

For more information, contact VisualPlanet now.

Contact Visualplanet Request a Quote Request Documentation

Touch screen overlay for an engaging experience

VisualPlanet is the founder of Touchfoil^TM, an innovative touch screen film that can be used to create interactive and immersive experiences.

When applied to glass and then a standard LCD screen, the touch screen overlay uses micro-fine copper sensing elements to deliver touch performance. Utilising multi-touch technology, each foil can respond to up to 32 touches.

Several people can use the interactive display simultaneously, making it an experience that everyone can share together.

Available in sizes ranging from 15 to 85 inches, the touch screen foil is ideal for large format display applications. Simply apply to the back of glass to turn any small, medium, or large display into a touch-sensitive surface.

VisualPlanet’s projected capacitive (PCAP) touch foil is waterproof and rugged, ensuring you can use it for indoor and outdoor applications. You can maximise your return on investment (ROI) anywhere and in any weather.

By working with leading glass manufacturers to design the touch glass, VisualPlanet guarantees a quality product that will turn your standard displays into interactive displays.

Touch screen overlay for a range of applications

In creating a unique and engaging experience, touch screen film is ideal for a wide range of interactive applications, including:

Gaming machines
Vending machines
Kiosks
Interactive whiteboards
Table-tops
Interactive digital signage
Industrial touch screens
Shop windows

A standard piece of non-interactive glass between 2 millimetres and 10 millimetres can be used for any of these applications when Touchfoil^TM is applied.

Features and benefits of the touch screen overlay

Feature	Benefit
Multi-touch	Up to 32 simultaneous touches makes the touch screen a sociable and interactive experience that maximises your ROI.
Weatherproof	Whether it’s hot or cold, wet or dry, your touch screen can be used in any condition. Suitable for enclosures rated up to IP68.
Flexible	Can be used on almost any transparent, non-metallic surface, whether it’s flat or curved, indoors or outdoors, thick or thin.
Sensitive through thick glass	Works through glass between 2 millimetres and 10 millimetres thick, giving your standard display the protection it requires.
Usable with gloves	Usable in cold and wet conditions, maximising your ROI in every season.

Touch screen overlay technical specifications

Detection method	Projected capacitive using a 10-micrometre copper sensing array.
Size	40 inches (15 to 85 inches also available).
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi-touch: 32 as standard. Up to 40 available on request. Dual touch: 2.
Speed of response	6 to 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	-10°C to +60°C.
Humidity	95% at +60°C.
