Create a reliable touch screen ticket machine with PCAP foil technology

Touch screen ticket machine [15” - 85” Touchfoil]

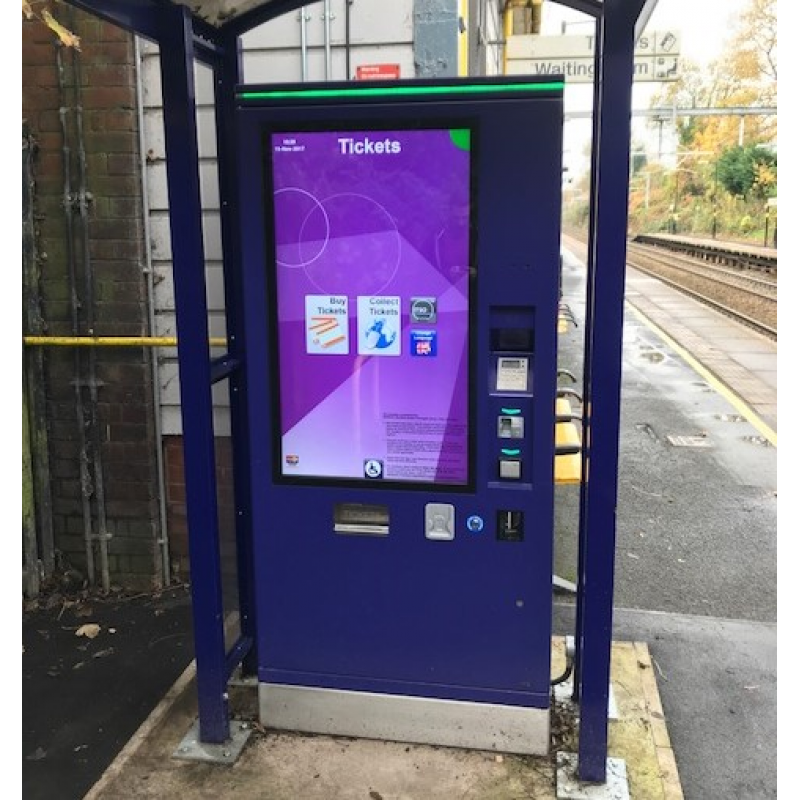

A PCAP foil touch screen ticket machine at a train station

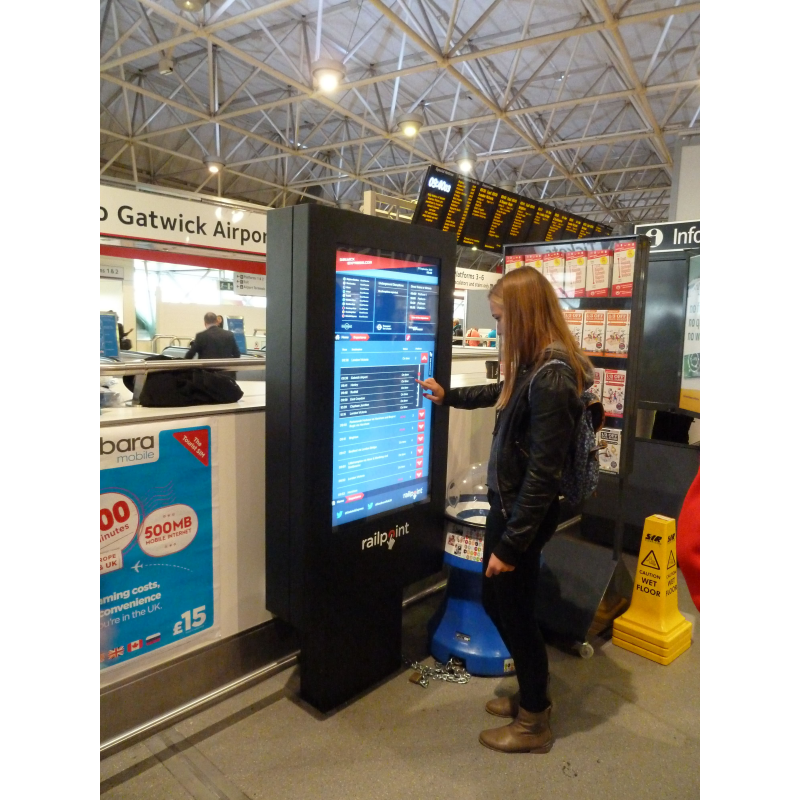

A girl using a touch screen ticket machine timetable at an airport

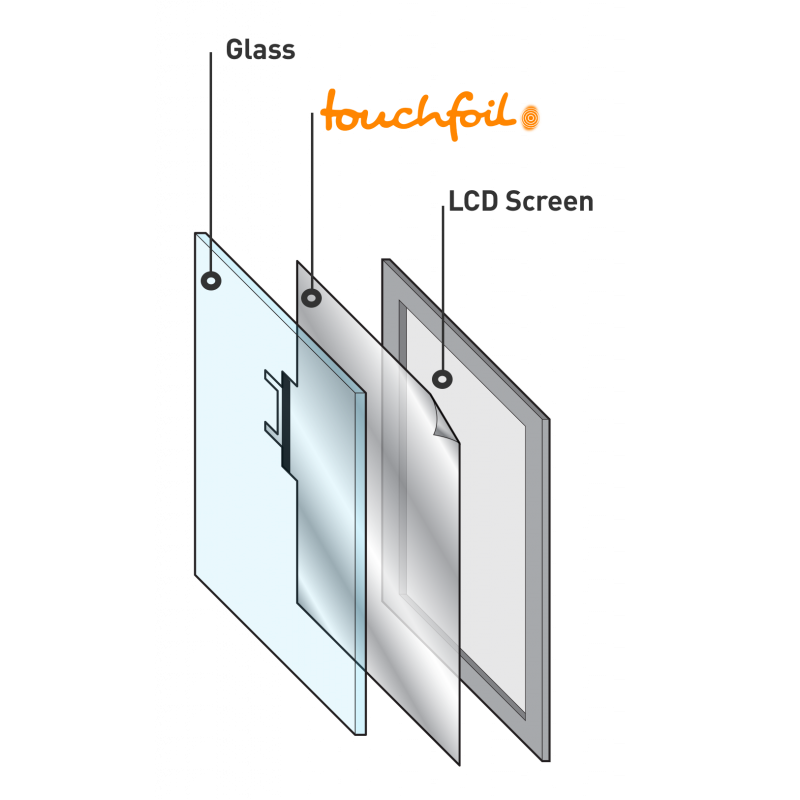

A touch screen ticket machine assembly diagram

Use a projected capacitive (PCAP) touch foil to create a reliable touch screen ticket machine. PCAP screens work in hot, cold and wet weather and use thick glass to protect the display from damage. Your ticket machines serve travellers in all conditions, and you receive maximum return on investment.

Find out more. Contact VisualPlanet today.

Contact Visualplanet Request a Quote Request Documentation

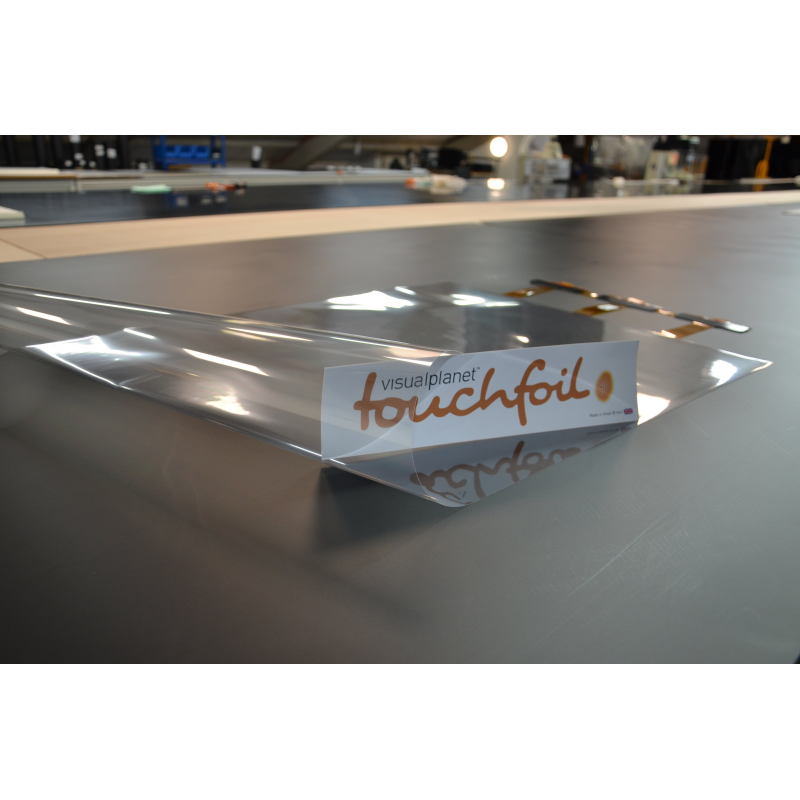

PCAP foils for touch screen ticket machines in all environments

PCAP foils are ideal for interactive ticketing solutions in indoor and outdoor locations. PCAP touch screens work in all weather and use thick, vandal-proof glass. Your ticketing kiosks function reliably in all environments, generating maximum revenue and providing travellers with a faster journey.

As the leading manufacturer of PCAP foils, VisualPlanet provides a two-year warranty and outstanding customer support. You get a reliable ticket machine in any environment.

Features and benefits of PCAP touch screens

Reliable: PCAP foils are ideal for reliable touch screens that work day and night. You benefit from reduced staff costs while still providing a ticketing service to travellers.
Vandal-proof: VisualPlanet’s PCAP overlays work through glass up to 10 millimetres thick. The LCD screen is protected from accidental and deliberate damage. Your touch screen ticket machine has a long life with reduced downtime.
Weatherproof: PCAP foils work in hot, cold and wet weather. Use PCAP overlays with enclosures rated up to IP68 for complete protection from water, dust and dirt. Your ticket machine functions reliably and generates revenue in all conditions.
Bespoke: VisualPlanet’s PCAP foils are available in a range of sizes from 15 to 85 inches. Ideal for self-service ticket machines in car parks, bus and train stations, and more.

For more information, talk to VisualPlanet today.

PCAP foil technical specifications

Detection method	Projected capacitive using a 10-micrometre copper sensing array.
Size	15 to 85 inches. Larger foils available on request.
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi-touch: 32 as standard. Up to 40 available on request. Dual touch: 2.
Speed of response	6 to 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	-10°C to +60°C.
Humidity	95% at +60°C.
