Vandal proof touch screen for public environments

Vandal proof touch screen [15” to 85” Touchfoil]

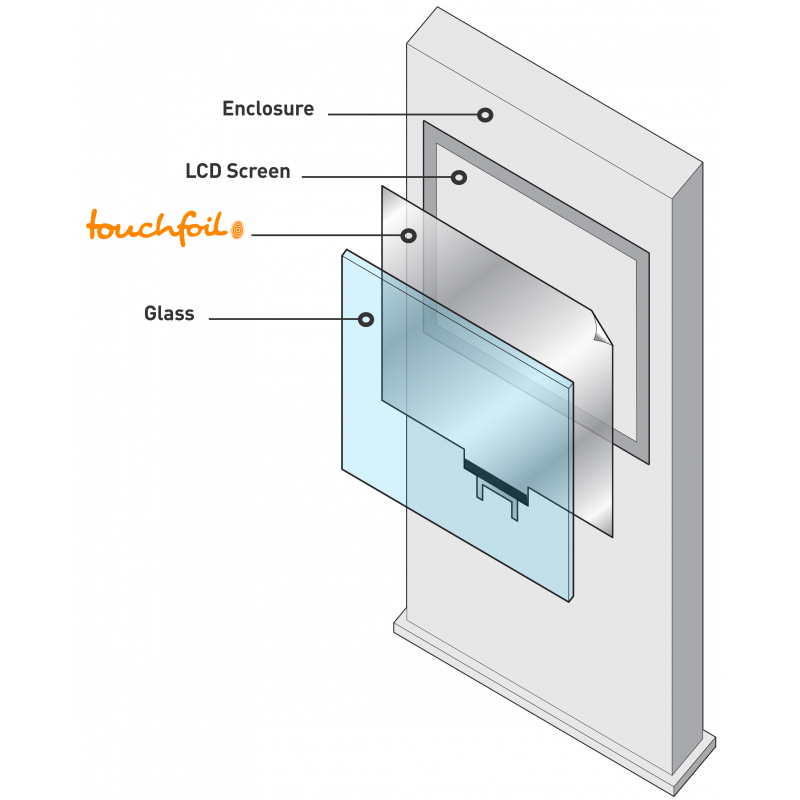

A diagram showing how to make a vandal proof touch screen from a PCAP foil.

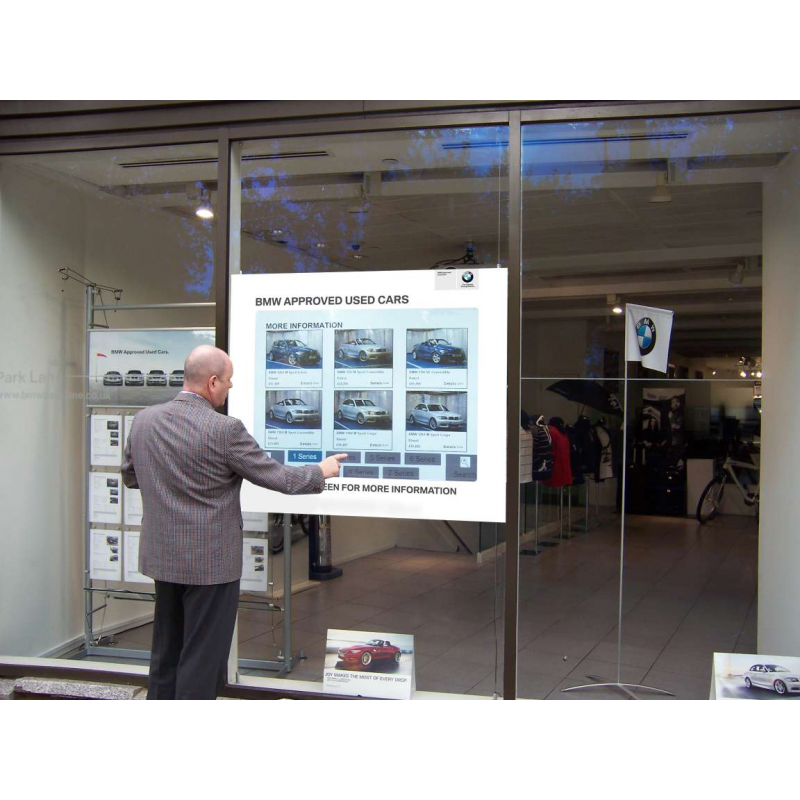

A PCAP vandal proof touch screen in a shop window.

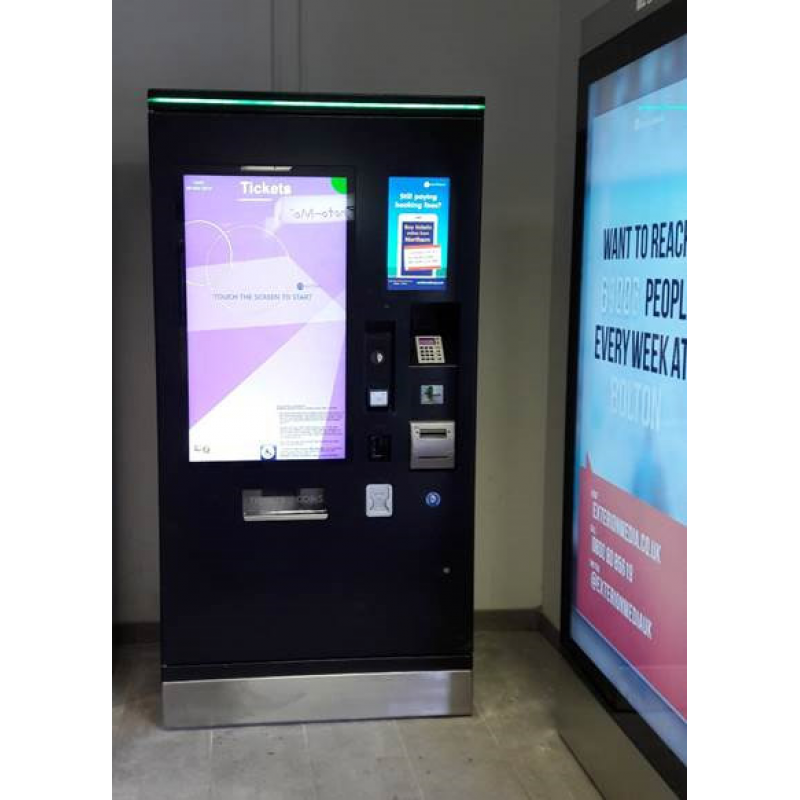

A PCAP vandal proof touch screen ticket machine.

VisualPlanet’s projected capacitive (PCAP) overlay allows you to turn an LCD display into a vandal proof touch screen. PCAP overlays work through thick glass. You can create interactive experiences and protect your screen at the same time.

PCAP foils are ideal for ticket machines, signage, ATMs and more.

Contact VisualPlanet to find out more.

Contact Visualplanet Request a Quote Request Documentation

Vandal proof touch screen for public locations

VisualPlanet provides PCAP touch screen solutions for public places. A PCAP overlay can be laminated to the back of any glass pane to turn it into a touch sensitive surface.

PCAP overlays have a number of benefits:

Robust: PCAP overlays work through glass up to 10-millimetres thick to protect the LCD screen from damage. Your touch screen has reduced downtime, requires less maintenance and provides the maximum return on investment.
Reliable: VisualPlanet’s interactive foils work in hot, cold and wet weather. The touch screen operates reliably in harsh environments all year round to maximise utilisation of the display. PCAP overlays are suitable for use with enclosures rated up to IP68.
Bespoke: VisualPlanet manufactures PCAP overlays in a range of sizes and shapes. Choose the best size for you, from a 15-inch overlay for an ATM machine to large format overlays for digital signage.
Engaging: As well as being rugged and reliable, touch overlays allow you to create attractive digital displays. VisualPlanet’s multi-touch foil responds to 32 touches at the same time. Interactive screens increase customer engagement and provide new revenue streams for your business.

As a leading manufacturer of PCAP touch screen overlays, VisualPlanet has worked with customers such as Adidas, BMW and Samsung. PCAP overlays come with a two-year warranty and VisualPlanet provides excellent customer support.

PCAP overlays are suitable for all vandal proof touch screens:

Interactive digital signage
ATM machines
Self-service ticket machines
Interactive vending machines
Interactive wayfinding kiosks
Outdoor touch screens

For more information, contact VisualPlanet using the form below.

PCAP overlay technical specifications

Detection method	Projected Capacitive using a 10-micrometre copper sensing array.
Sizes	15 to 85 inches. Larger foils are available on request.
Glass thickness	2 millimetres to 10 millimetres. Glass thicker than 10 millimetres is available on request.
Number of touches	Multi-touch: 32 as standard. 40 available on request. Dual touch: 2.
Speed of response	6 to 8 milliseconds.
Controller board	USB controller board. Specification depends on size of foil.
Operational temperature range	-10°C to +60°C.
Humidity	95% at +60°C.
